Agilent/Keysight M9203A

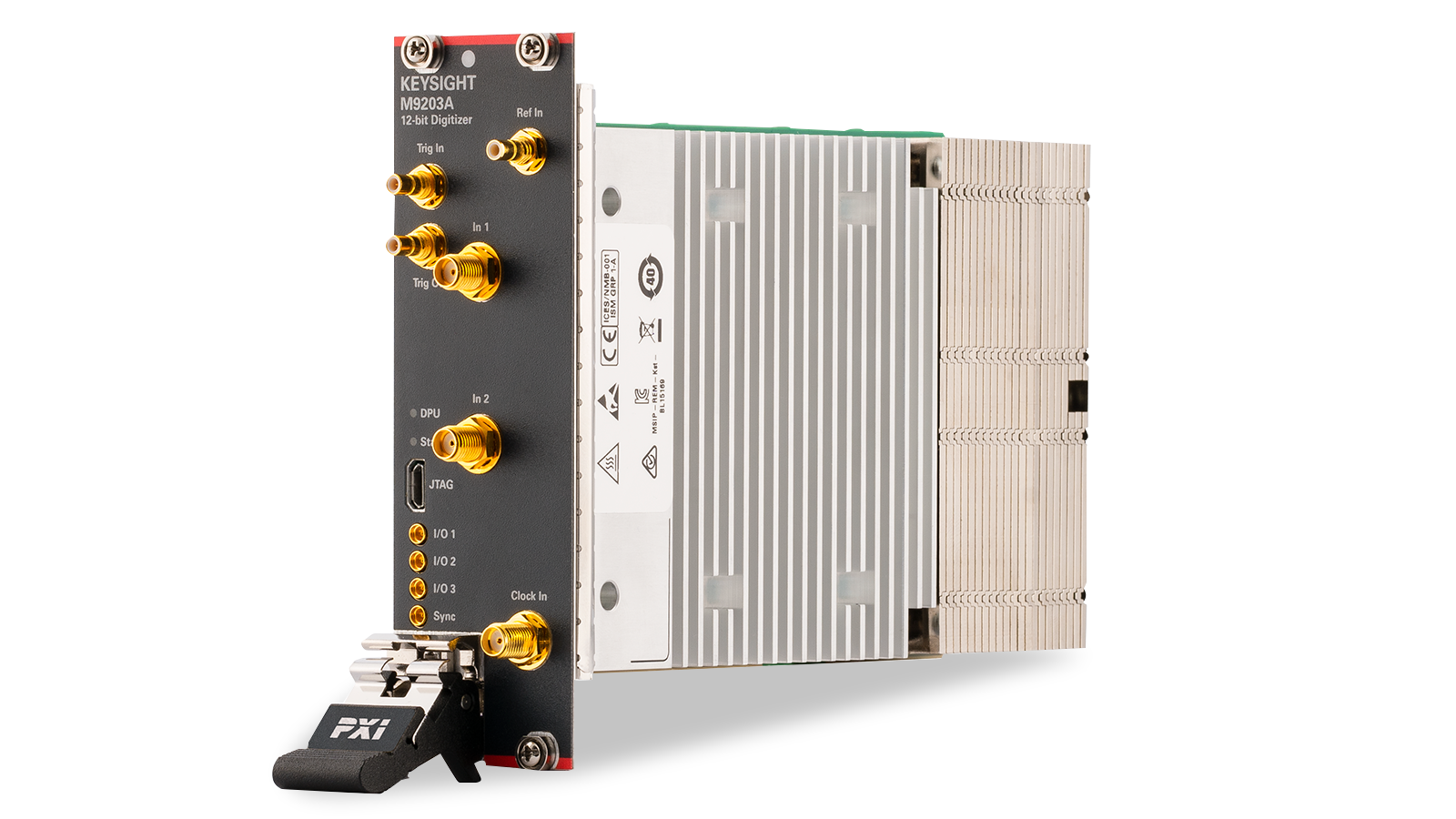

The Keysight M9203A is a PXIe high-speed digitizer and wideband digital receiver engineered for wireless communication, radar, and satellite signal acquisition. This dual-channel, 12-bit instrument captures signals across DC to 2 GHz at sampling rates up to 3.2 GS/s, delivering 64 dBc dynamic range and ±200 fs channel-to-channel skew stability. The module integrates a Xilinx Virtex-6 FPGA for real-time signal processing and custom algorithm deployment, with optional digital down-conversion on phase-coherent channels. Data throughput is sustained via PCIe Gen2 (x8) backplane, enabling continuous streaming to disk storage. Configurable 1 V or 2 V full-scale input ranges accommodate diverse signal levels, while 15 ps RMS trigger time interpolator precision ensures deterministic timing.

– Technical Specifications

• ADC: 12-bit resolution, up to 3.2 GS/s sampling rate
• Analog Bandwidth: DC to 2 GHz
• Input Impedance: 50 Ω, DC coupled
• Dynamic Range: 64 dBc
• Full Scale Range: Selectable 1 V or 2 V
• Input Voltage Offset: ±2× FSR
• Acquisition Memory: DDR3, up to 4 GB (1 GSamples/channel)
• Channel-to-Channel Skew: ±200 fs
• Trigger Time Interpolator: 15 ps RMS
• Form Factor: Dual-slot 3U PXIe; 185 × 130 × 40 mm

– Key Features

• Xilinx Virtex-6 FPGA enables on-board real-time processing and open algorithm development with U5340A FPGA Development Kit (-FDK option)
• Real-time digital down-conversion on 2 phase-coherent channels (-DDC option)
• PCIe Gen2 (x8) backplane with continuous disk streaming capability
• Dual input coupling modes (DC, AC); selectable input offset
• Compatible with PXIe and PXI Hybrid chassis

– Typical Applications

• Wireless communication standards: 5G, LTE, DOCSIS 3.1
• Radar signal capture and analysis
• Satellite communication systems
• Wideband signal acquisition in automated test environments

– Compatibility & Integration

Operates on Windows and Linux platforms. Supported software includes Keysight IO Libraries Suite, PathWave VSA, U1092A Multichannel Acquisition Software, MD2 Soft Front Panel, and IVI-COM/IVI-C drivers (IviDigitizer compliant). Streaming application software available with -CB0 and -CB2 options.
