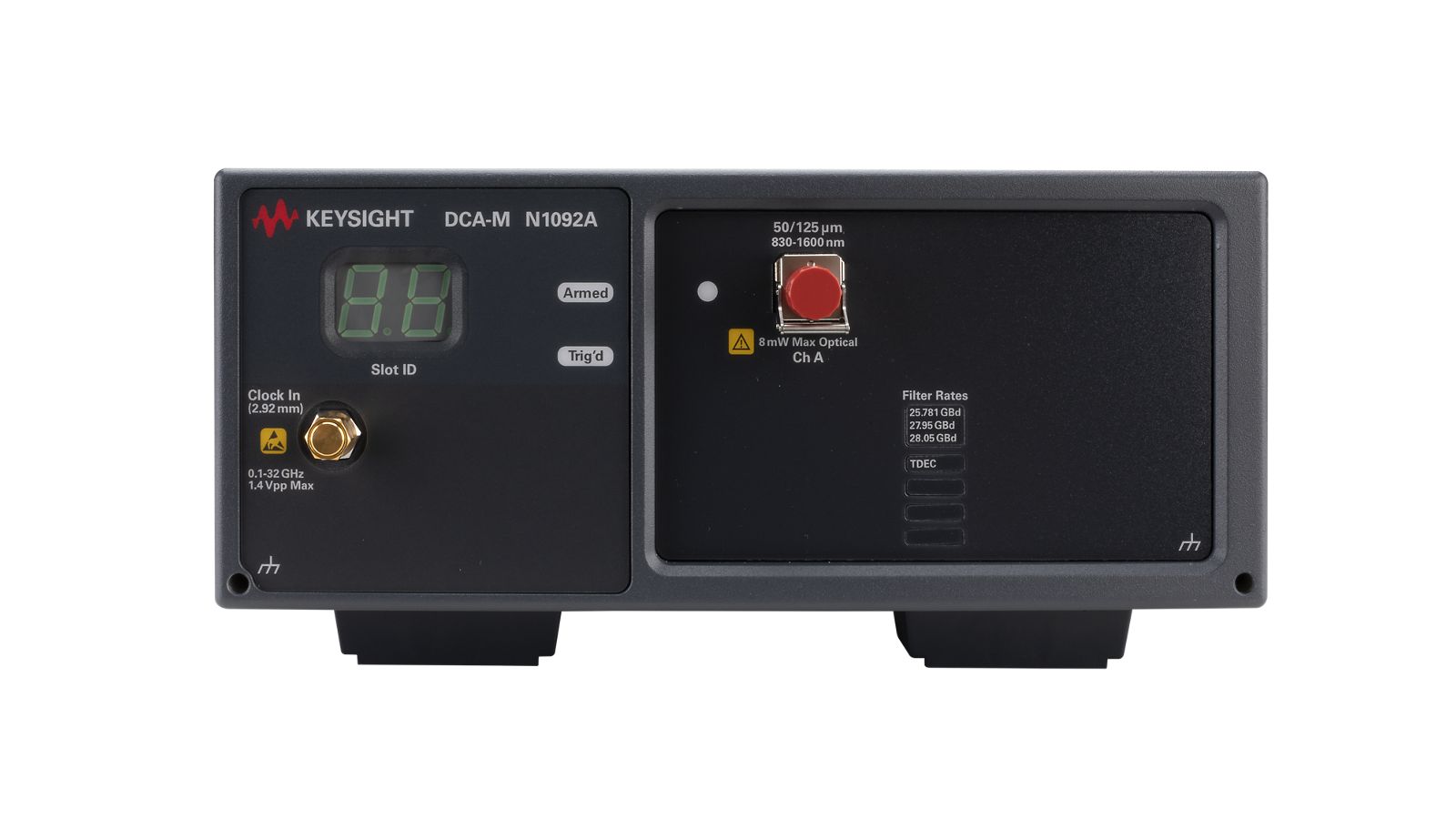

Agilent / Keysight N1092A DCA-M Sampling Oscilloscope (Single Optical Channel)

The Keysight N1092A DCA-M is a single-channel optical sampling oscilloscope designed for high-speed optical signal analysis. It offers accurate and reliable measurements for characterizing optical transceivers and components in communication systems. This instrument leverages the high-performance acquisition system of the N1000 and 86100 oscilloscope mainframes, integrated with optical and electrical channel hardware from the 861XX and N104X plug-in modules. The N1092A DCA-M is a compact, fully integrated instrument ideal for both R&D and manufacturing environments.

### Technical Specifications

**General Performance**

* **Bandwidth:** Unfiltered bandwidth greater than 40 GHz (Option 40A).
* **Jitter:** Accurate high data-rate analysis with jitter less than 200 fs.
* **Sensitivity:** High sensitivity with noise less than 5 µW.
* **Sampling Rate:** Fast throughput with a high 250 kHz sample rate.
* **Data Rates:** Supports solutions for data rates from 8.4 to 64 Gbaud. The N1092A/B/C/D/E models are designed for use from 20 to 28 Gb/s, with ranges extendable via Options PLK and IRC.
* **Noise Floor:** Characteristic noise values are available for various optical channels. For example, with the 32G Fibre Channel reference receiver filter selected, typical noise levels are 9.5 µW at 850 nm and 6 µW at 1310/1550 nm.

**Optical Channel Characteristics**

* **Wavelength Range:** 830 nm to 1600 nm. Factory-calibrated wavelengths include 850 nm, 1310 nm, and 1550 nm (± 20 nm).
* **Reference Receiver Filter Options:** The N1092A includes filters for testing data rates such as 25.78 Gb/s (25/50/100 Gb Ethernet), 26.56 Gb/s (400 Gb Ethernet), 27.95 Gb/s (OTU4), and 28.05 Gb/s (32x Fibre Channel). Specific filter options like N1092-168 for 100GBASE-SR4 TDEC (12.4 GHz) and N1092-206 for 20.6 Gb/s are available.
* **Maximum Optical Channel Bandwidth:** The maximum optical channel –3 dBo bandwidth is 28 GHz, achievable using the 32xFC filter setting.
* **Sensitivity:** Sensitivity 1 (smallest average power for mask test) is -10 dBm at 1310/1550 nm for OTU4 and 32G Fibre Channel rates. For 850 nm, it is -11.5 dBm for 20.6 Gb/s and -10 dBm for OTU4 and 32G Fibre Channel.

**Integrated Features**

* **Clock Recovery:** Integrated clock recovery is available with Option CDR.
* **FlexDCA Interface:** The N1092A utilizes the FlexDCA interface, which is identical to the user interface and operating system of the 86100D and N1000A. This software is available for download and simplifies the conversion of legacy automation setups.

### Interfaces

* **Control:** Controlled via USB 2.0 or 3.0 from a PC running N1010A FlexDCA software. Remote control can also be achieved via SCPI over LAN (VXI-11 or HiSlip).
* **Input Connectors:** Features FC/PC and 2.4 mm input types for electrical channels (N1092C/E).
* **Clock Input:** Maximum non-destructive input voltage is 1.4 Vpp, with a recommended input of less than 500 mVp-p.

### Physical Characteristics

* **Form Factor:** Compact design with a small footprint. The instrument is fully integrated, unlike modular systems.
* **Dimensions:**
* Height: 88.26 mm (3.48 in) without front connectors and rear feet.
* Width: 207.40 mm (8.17 in) without front connectors and rear feet.
* Depth: 485 mm (19.01 in) without front connectors and rear feet.
* With front connectors and rear feet: 103.31 mm H x 219.56 mm W x 517.80 mm D (4.07 in x 8.64 in x 20.39 in).
* With front cover and rear feet: 110.18 mm H x 219.56 mm W x 550.71 mm D (4.34 in x 8.64 in x 21.68 in).
* **Weight:** 6.20 kg (13.68 lb) for the mainframe (characteristic), without front connectors and rear feet.

### Environmental Specifications

* **Operating Temperature:** 10 to +40 °C (50 to +104 °F).
* **Non-operating Temperature:** –40 to +70 °C (–40 to +158 °F).
* **Altitude (operating):** Up to 4,600 meters (15,000 ft).
* **Maximum Relative Humidity:** 80% for temperatures up to 31 °C (87.8 °F), decreasing linearly to 50% relative humidity at 40 °C (104 °F).
* **Line Power:** 100/120 Vac, 50/60/400 Hz or 220/240 Vac, 50/60 Hz.
* **Power Consumption:** 50 W maximum. The product can operate with mains supply voltage fluctuations up to ± 10% of the nominal voltage.

### Compatibility and Control

* **Software:** Controlled by a PC running N1010A FlexDCA software. Remote programs developed for the 86100 or N1000 FlexDCA interface can be leveraged.
* **Mainframe Integration:** Can be controlled by an 86100D or N1000A mainframe via USB.
* **Fiber Compatibility:** Compatible with external fibers with core diameters less than 50 µm.
