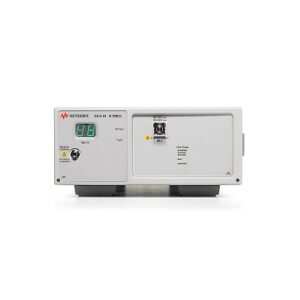

The Keysight N1092D is a four-channel optical sampling oscilloscope engineered for high-speed optical communication signal characterization. It delivers sub-200 fs jitter performance and operates across 830 nm to 1600 nm wavelengths, supporting data rates from 20 to 28 Gb/s and modulation formats including NRZ and PAM4. The instrument integrates standard reference receivers for 25 Gb Ethernet, 400 Gb Ethernet, OTU4, and Fibre Channel applications, with optional bandwidth expansion to >40 GHz and advanced filtering configurations.
– Technical Specifications
• Optical Channels: Four
• Optical Bandwidth (-3 dB): 28 GHz characteristic; >40 GHz with Option 40A; 45 GHz characteristic
• Supported Data Rates: 20–28 Gb/s; 8.4–64 GBaud; 20.6–28 GBd (NRZ, PAM4); 53 GBd TDECQ on PAM4; 25.78125 Gb/s (25 Gb Ethernet); 26.56 Gb/s (400 Gb Ethernet); 27.95 Gb/s (OTU4); 28.05 Gb/s (32x Fibre Channel)
• Sample Rate: 250 kHz
• Jitter (RMS): <200 fs
• Noise (RMS): <5 µW characteristic; 850 nm <5 µW; 1310 nm <3 µW; 1550 nm <3.5 µW
• Clock Input Range: 500 MHz to 28.5 GHz; 0.455 to 32 GHz
• Wavelength Range (User Calibration): 830 nm to 1600 nm
• Factory-Calibrated Wavelengths: 850 nm (±20 nm), 1310 nm (±20 nm), 1550 nm (±20 nm)
– Key Features
• Standard reference receivers for 25.78 Gb/s, 26.56 Gb/s, 27.95 Gb/s, and 28.05 Gb/s standards
• Optional TDEC filtering, custom bandwidth modules, and impulse response correction
• Optional pattern lock trigger hardware for enhanced synchronization
• Dynamic range suitable for demanding optical compliance and jitter analysis
– Typical Applications
• 25/50/100 Gb Ethernet signal characterization
• 400 Gb Ethernet and OTU4 compliance testing
• Fibre Channel signal analysis
• Eye diagram measurement and jitter quantification
– Compatibility & Integration
• Remote control via SCPI over LAN (VXI-11 or HiSlip)
• USB connectivity to DCA-X mainframe or user-supplied PC
• Software compatible with legacy 86100 FlexDCA interfaces and automation frameworks
• Supplied with USB cable, power cord, and instrument cover
