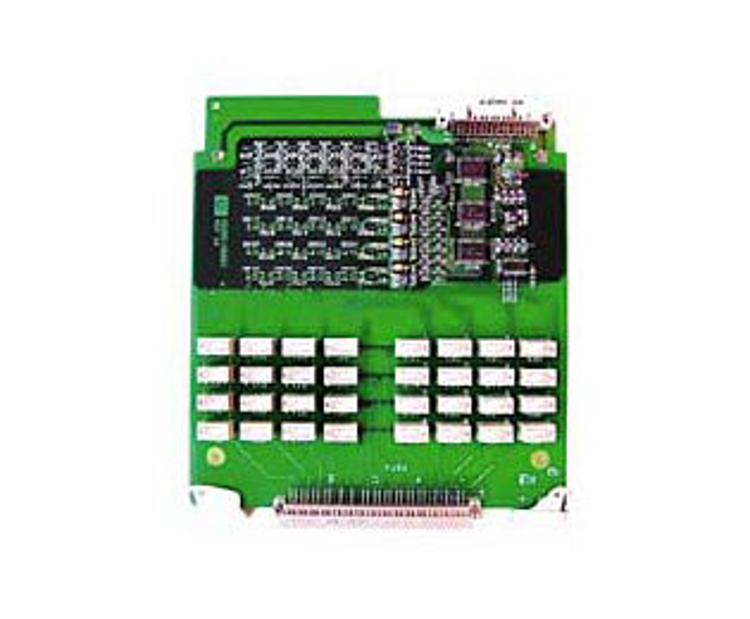

The N2262A is a 4×8 matrix switch module engineered for signal routing within automated test systems. This plug-in module for the Keysight 3499A/B/C Switch/Control System provides 32 cross points arranged in a 4-row by 8-column configuration. Each cross point switches two wires—accommodating both high and low signal paths typical of precision measurements. The module employs armature latching relays rated for 10⁸ mechanical cycles, enabling extended service life in high-cycle applications. Up to eight channels operate in parallel for high-speed switching performance. Built-in relay cycle counters support preventive maintenance scheduling.
– Technical Specifications
• Matrix Configuration: 4×8 with 32 cross points
• Switching Capability: 2 wires per cross point
• Parallel Operation: Up to 8 channels simultaneous
• Relay Type: Armature latching
• Mechanical Life: 10⁸ cycles
• Maximum Voltage: 200 V
• Maximum Current: 1 A
• Maximum Power: 60 W (62.5 VA)
• Closed Channel Resistance: <1 Ω
• Thermal Offset: <3 µV
– Key Features
• Relay cycle counters for maintenance tracking
• Flexible multi-row-to-column connection configurations
• Compatible with additional matrix and multiplexer modules for expanded switching topologies
• Latching relay design minimizes power consumption during steady-state operation
– Typical Applications
Signal routing in automated test benches, multi-point device characterization, and parametric measurement systems requiring low thermal offset and stable contact resistance.
– Compatibility & Integration
Designed exclusively for the Keysight 3499A/B/C Switch/Control System. The HP 34992A screw terminal block provides plug-and-play connectivity. Alternative wiring solutions include crimp terminals and DIN96-to-D50/25 cables.
