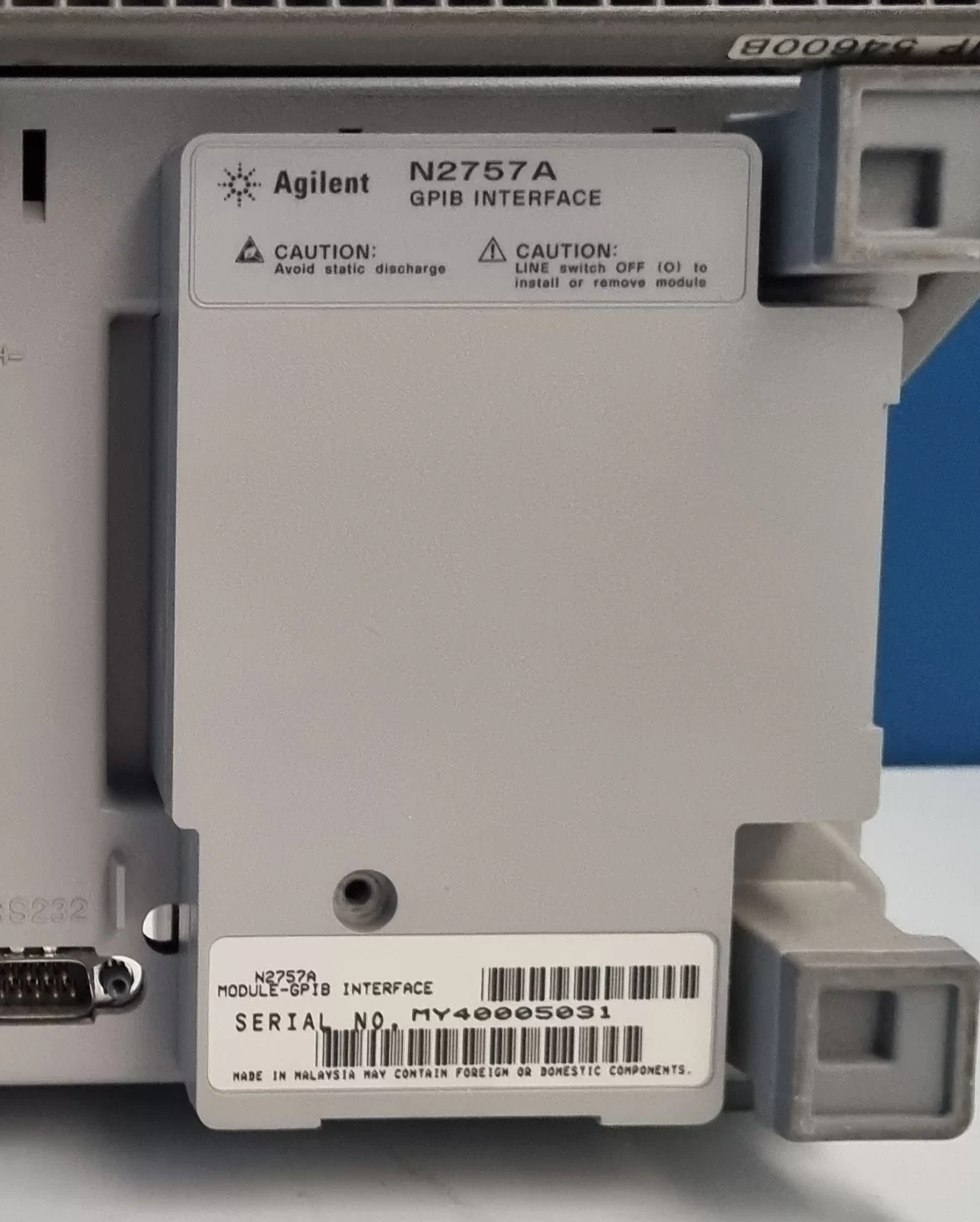

The Keysight N2757A GPIB Interface Module adds IEEE-488 connectivity to Agilent 54620/40-series oscilloscopes, enabling remote instrument control and data acquisition over USB. This compact, bus-powered module supports plug-and-play installation with automatic driver configuration, eliminating manual setup delays. The N2757A delivers GPIB data transfer rates up to 1.15 MB/s and allows daisy-chain connection of up to 14 instruments on a single GPIB network. Hot-swappable USB connectivity lets you connect and disconnect without powering down the host PC.
– Technical Specifications
• GPIB Standard Compliance: IEEE 488.1 and IEEE 488.2
• Data Transfer Rate (GPIB): Up to 1.15 MB/s
• USB Interface: Standard Type-A connector
• GPIB Connector: Standard 24-pin IEEE-488
• Maximum Daisy-Chain Instruments: 14 via GPIB
• Maximum Converters per PC: 4 units
• Power Consumption: +5 V, 500 mA maximum; 200 mA typical
• Power Source: USB bus-powered (no external supply required)
– Key Features
• Plug-and-play USB connectivity with automatic driver installation on Windows XP, Vista, and Windows 7
• Hot-pluggable design allows connection changes without system restart
• Three LED status indicators: READY, ACCESS, and FAIL for real-time operation monitoring
• Improved GPIB cable shielding design reduces RFI levels; includes clip-on ferrite bead for additional EMI suppression
• Bundled Keysight I/O Libraries Suite and VISA software for instrument control and interoperability
– Typical Applications
• Automated test system integration for legacy oscilloscope networks
• Remote data acquisition from Agilent 54621A, 54622A, 54624A, 54641A, 54642A, and 54621D/22D/41D/42D models
• Retrofit GPIB control to instruments lacking native IEEE-488 connectivity
• Multi-instrument synchronization and coordinated measurement campaigns
– Compatibility & Integration
The module integrates with Keysight I/O Libraries Suite for device configuration. Software compatibility extends to Agilent VEE 5.0+, LabVIEW 5.1+, and Visual C/C++ 5.0/6.0. Use with IntuiLink connectivity software for direct 54600-series oscilloscope linking. Standard USB Type-A connection to the host PC; rear-panel GPIB connector attaches directly to compatible instruments with supplied screw fastening.
