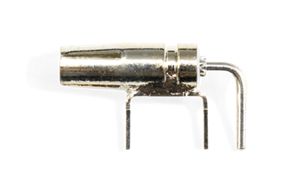

Agilent/Keysight N2766A

The Agilent/Keysight N2766A is a horizontal mini-probe socket designed for direct solder-in mounting onto printed circuit boards. It creates dedicated test points that minimize ground inductance and preserve signal fidelity during high-frequency measurements. Supplied as a package of 25 sockets, this accessory serves as a foundational component for engineers requiring optimized probing access in signal integrity-critical applications.

– Technical Specifications

• Form Factor: Horizontal mini-probe socket
• Mounting Method: Solder-in to PCB
• Package Quantity: 25 sockets per unit
• Primary Function: Ground inductance minimization and signal fidelity enhancement

– Key Features

• Reduces parasitic effects through proximity grounding strategy
• Enables close-proximity ground reference at probe tip, critical for higher-frequency measurements
• Solder-in design ensures reliable mechanical and electrical connection
• Optimized for loop inductance reduction in signal path

– Typical Applications

• High-speed digital signal measurement and characterization
• Sensitive analog circuit probing with minimized noise coupling
• PCB prototyping and debug access during development cycles
• Automated test equipment (ATE) fixture integration for repeatable test point access

– Compatibility & Integration

The N2766A is compatible with Keysight’s 1160 Series miniature passive probes. It integrates with the N2768A vertical mini-probe socket as part of a complete mini-probe socket ecosystem. Consult the N2766A and N2768A Mini-Probe Sockets Design Guide for recommended PCB layout dimensions and placement guidance to ensure optimal performance during integration.
