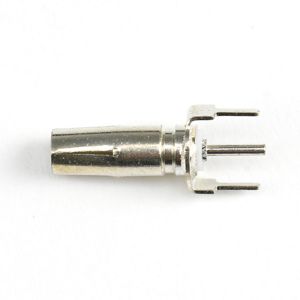

The N2768A is a set of 25 vertical mini-probe sockets engineered for direct PCB integration with Keysight Infiniium series oscilloscopes. These sockets establish high-bandwidth connections between compatible passive probe tips and circuits under test, functioning as soldered test points that minimize ground inductance and preserve signal integrity for precision measurements.
– Technical Specifications
Connection Type: Vertical Mini Probe Socket
Quantity: 25 sockets per package
Mounting Method: Solder-direct onto printed circuit board
Probe Family Compatibility: N2870A-76A and 1160A-65A family passive probes
Oscilloscope Compatibility: Keysight Infiniium Series Oscilloscopes
– Key Features
• High-bandwidth signal path optimized for hands-free probing of through-hole devices
• Ground inductance minimization through direct board-level mounting
• Signal fidelity preservation in demanding measurement environments
• Standardized socket geometry for repeatable probe interface
– Typical Applications
These sockets serve as permanent or semi-permanent test points on development and production circuit boards. They enable rapid signal acquisition from through-hole components without requiring probe tip manipulation, making them ideal for automated test sequences, high-speed signal characterization, and designs requiring multiple simultaneous measurement points.
– Compatibility & Integration
The N2768A integrates directly with N2870A-76A and 1160A-65A series miniature passive oscilloscope probes. The sockets are designed exclusively for Keysight Infiniium oscilloscope platforms. Board layout planning can reference the “N2768A and N2766A Mini-Probe Sockets Design Guide,” which provides dimensional data for PCB footprint development. Horizontal mounting configurations are available via the related N2766A socket variant.
