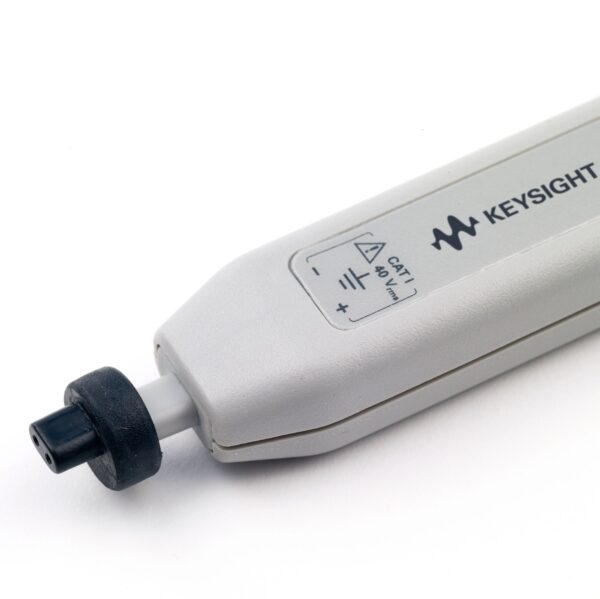

The Agilent/Keysight N2793A is an 800 MHz differential probe for high-voltage measurements across power electronics, automotive systems, and digital designs. It delivers a 10:1 attenuation ratio and connects directly to oscilloscopes equipped with 50Ω BNC inputs. The probe measures differential voltages to ±15 V while rejecting common-mode signals up to ±30 V, making it ideal for noisy automotive and industrial environments. Powered by USB or an internal 9V battery, the N2793A presents minimal circuit loading with 200 kΩ input resistance and 1 pF input capacitance. A built-in DC blocking capacitor removes unwanted DC offsets without additional components.
Technical Specifications
• Bandwidth: 800 MHz
• Attenuation Ratio: 10:1
• Input Impedance: 200 kΩ
• Input Capacitance: 1 pF
• Maximum Differential Voltage: ±15 V
• Maximum Common-Mode Voltage: ±30 V
• Output Connector: 50Ω BNC
• Cable Length: 70 cm
• Operating Temperature: −40°C to +85°C
– Key Features
• Dual power options: USB or 9V battery (included)
• High input impedance minimizes loading effects on circuits under test
• DC blocking capacitor integrated for AC coupling
• Comprehensive accessory kit: pincer clips, micro IC clips, extension leads (5 cm and 10 cm), dual and single signal pins, spacing adapters, and offset adjustment screwdriver
• 2 m USB power cord supplied
– Typical Applications
• High-speed power measurements in switching circuits
• Vehicle bus monitoring (CAN, LIN, FlexRay)
• High-speed digital system characterization
• Automotive serial bus analysis
– Compatibility & Integration
The N2793A requires an oscilloscope with 50Ω BNC input and ground-referenced operation. The 70 cm cable allows flexible probe placement without requiring additional extensions for most test benches.
