Agilent/Keysight N7740FI Optical Leakage Test Set

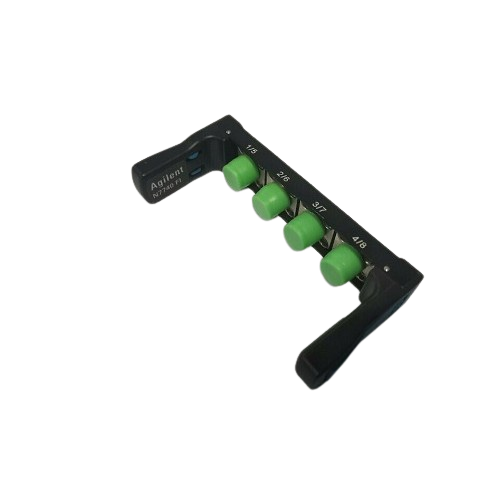

The Agilent/Keysight N7740FI is an FC connector adapter designed for use with Keysight’s N7744A and N7745A multiport optical power meters. It facilitates increased port density and simplifies the connection of devices under test (DUTs) to these power meters. This adapter allows for the connection of the DUT before it is attached to the instrument, enabling a more efficient workflow, especially when switching between different test setups or devices. The N7740FI is part of a quad-adapter system that utilizes a snap-on quick-locking mechanism for secure and repeatable connections.

### Technical Specifications

* **Product Type:** FC Connector Adapter
* **Compatibility:** Designed for Keysight N7744A and N7745A Optical Multiport Power Meters.
* **Connector Interface:** FC (typically FC/PC or FC/APC, though specific type may vary by revision and application).
* **Functionality:**
* Provides 4-port connectivity for FC connectors.
* Enables higher front-panel port density on multiport power meters.
* Facilitates efficient workflow by allowing DUT connection prior to instrument measurement.
* **Connectivity System:** Part of the N7740 fiber connectivity concept, featuring a quadruple adapter with a snap-on quick-locking mechanism.
* **Application:** Optical component and system testing, particularly for multiport devices such as multiplexers, PON splitters, wavelength selective switches (WSS), and ROADMs.
* **Dimensions:** Compact design for integration into test setups. (Specific dimensions not detailed in provided search results).
* **Weight:** Typically designed to be lightweight for ease of handling. (Specific weight not detailed in provided search results).

### Electrical

* No electrical specifications are applicable as this is a passive adapter.

### Interfaces

* **Optical Connector Type:** FC (specified for FC connectors).
* **Instrument Interface:** Snap-on quick-locking mechanism for direct attachment to N7744A/N7745A multiport power meters.

### Physical

* **Form Factor:** Quad-adapter module.
* **Durability:** Built for long-term use in laboratory and industrial settings.
* **Ergonomics:** Designed for comfortable working positions when connecting DUTs.

### Compatibility

* **Primary Compatibility:** Keysight N7744A and N7745A Optical Multiport Power Meters.
* **System Integration:** Compatible with Keysight’s N774x series instruments.
* **Connector Types:** Specifically designed for FC connectors.
* **Fiber Types:** Supports Standard SMF (Single Mode Fiber) and MM (Multimode Fiber) with core sizes up to 62.5 μm and NA ≤ 0.24.

### Operating Environment

* **Operating Temperature:** Typically 5°C to +40°C (though specific temperature ranges for laser sources are often cited as +10°C to +35°C, this adapter’s environmental operating parameters are generally aligned with the host instruments).
* **Storage Temperature:** -40°C to +70°C.
* **Operating Humidity:** 15% to 95% RH (non-condensing).
* **Maximum Operating Altitude:** 2000 m.
