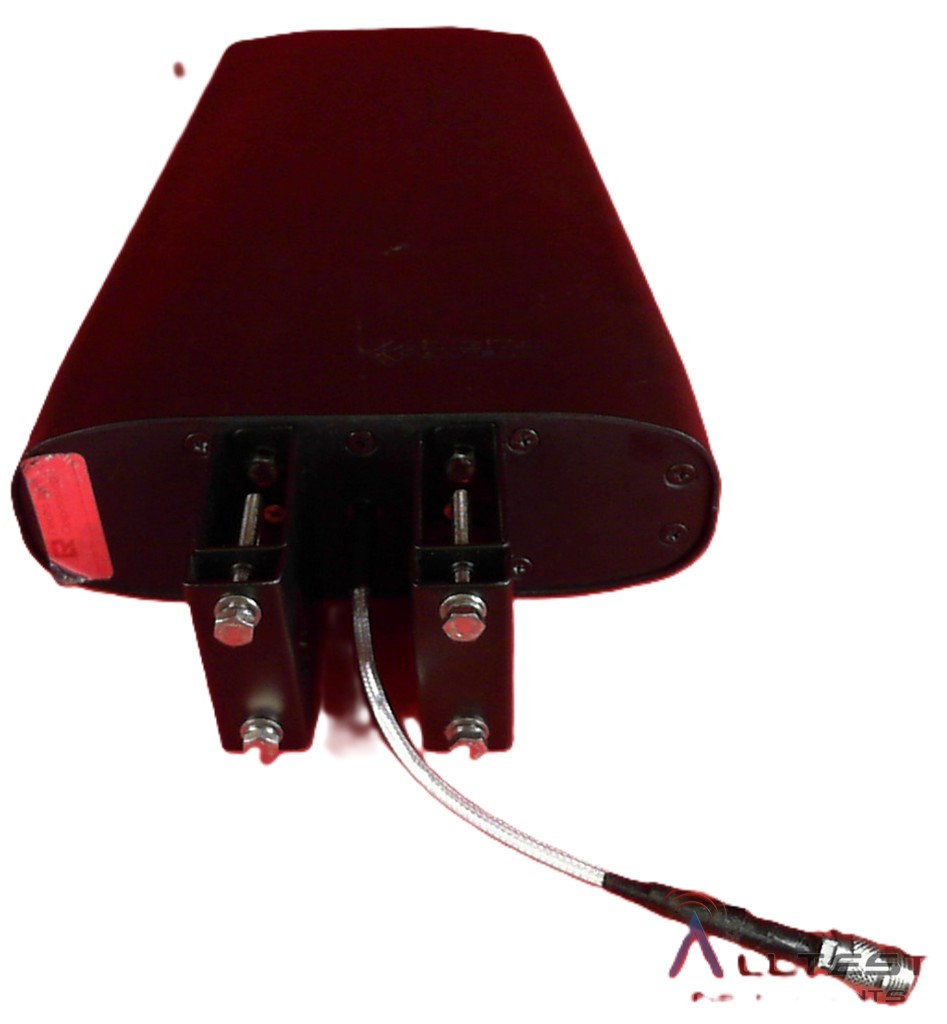

Agilent/Keysight N9910X-820

The Agilent/Keysight N9910X-820 is a directional, multiband antenna engineered for field RF measurement and analysis. Operating across 800 MHz to 2500 MHz, this antenna delivers 10 dBi gain and connects via Type-N female connector, making it the ideal choice for handheld analyzer applications requiring directional radiation patterns across cellular, PCS, and ISM bands.

– Technical Specifications

• Antenna Type: Directional, Multiband
• Frequency Range: 800 MHz to 2500 MHz
• Gain: 10 dBi
• Connector: Type-N (female)
• Product Series: N9910 Series

– Key Features

• Directional design enables site survey and signal source location in complex RF environments
• 10 dBi gain provides enhanced sensitivity across target frequency bands
• Type-N female connector ensures mechanical compatibility with standard RF test equipment
• Multiband operation spans four critical frequency regions: 800 MHz (cellular), 900 MHz (GSM), 1800–2100 MHz (UMTS/LTE), and 2400–2500 MHz (ISM/WiFi)

– Typical Applications

• Cellular network deployment and optimization
• RF site surveys and signal mapping
• Interference detection and source identification
• In-building coverage assessment
• Handheld RF measurement in field environments

– Compatibility & Integration

Full compatibility with Keysight FieldFox analyzer family: N9912A-104, N9912A-106, and all B-Series (N9913/4/5/6/7/8A) and C-Series (N9925/6/7/8A, N9935/6/7/8A) models. Integrates with the complete N9910 accessory ecosystem, including phase-stable measurement cables, calibration kits, and alternative antenna options such as telescopic whip, log-periodic, and GPS active antennas for extended frequency coverage and measurement flexibility.
