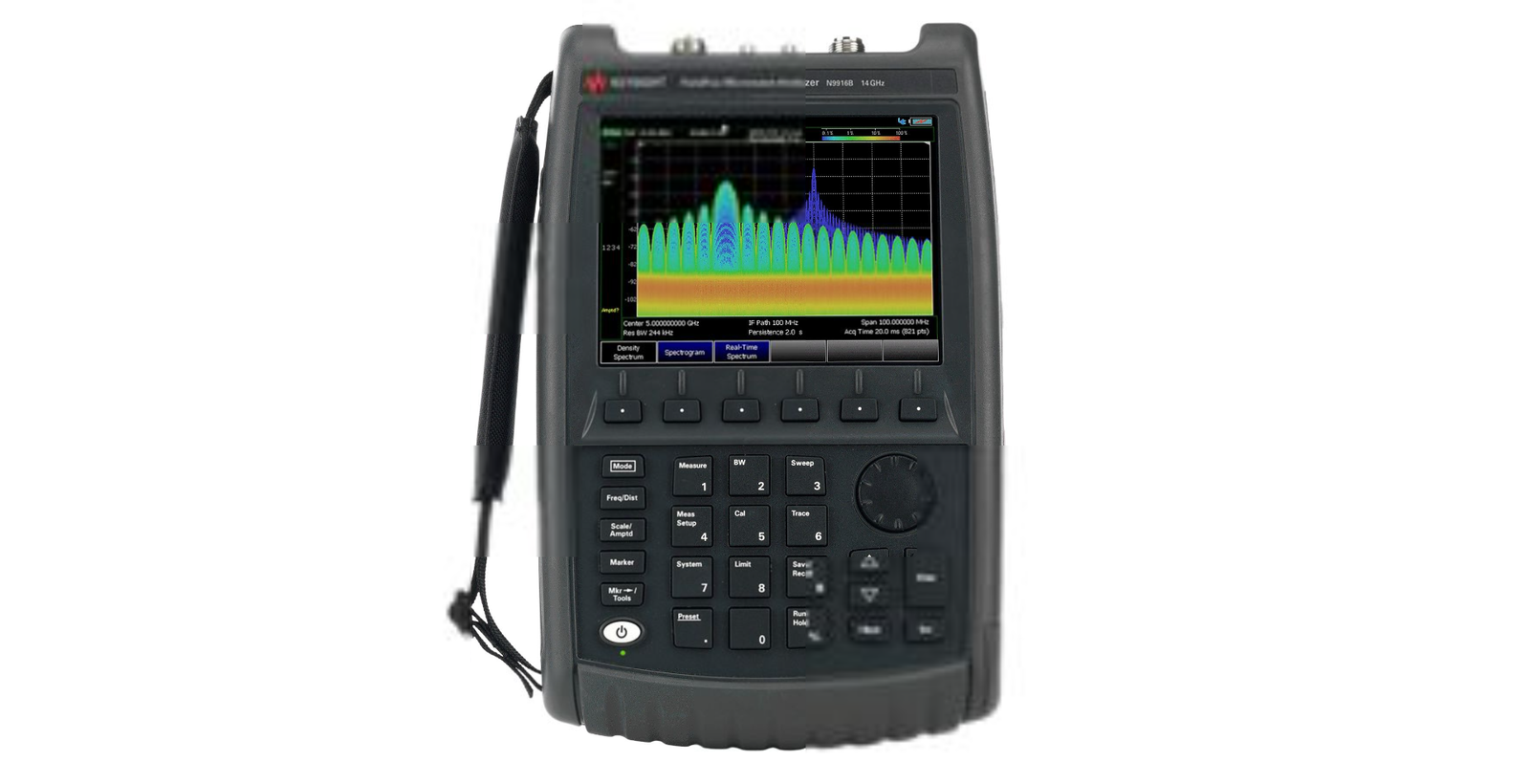

The Keysight N9916B FieldFox is a handheld microwave combination analyzer delivering RF and microwave measurements up to 14 GHz in a portable 3.4 kg platform. Built for field installation, maintenance, and troubleshooting of RF components—cables, antennas, filters, amplifiers—and signal analysis, the N9916B integrates cable and antenna analysis as standard with optional vector network analysis, spectrum analysis, and real-time spectrum capture.
– Technical Specifications
Frequency Range: DC to 14 GHz
Display: 6.5″ LCD-LED
Dimensions: 11.5 × 7.4 × 3.2 inches
Weight: 3.4 kg (7.4 lb)
Connectors: Two Type-N (female) ports
Battery: Lithium-ion with over 5 hours typical runtime
Output Power: Greater than +8 dBm across select bands; up to +10 dBm available
Spectrum Analyzer Accuracy: ±0.3 dB without warmup
VNA Dynamic Range: Greater than 115 dB for simultaneous four S-parameter measurement
Phase Noise: 10 dB improvement over previous FieldFox generation
DANL: 10 dB improvement over previous generation; up to 15 dB better in select bands
Real-Time Bandwidth: Gap-free capture up to 120 MHz (earlier versions support 100 MHz); options include 10 MHz, 40 MHz, and 120 MHz
– Key Features
• Cable and antenna analyzer (CAT) as base capability
• Optional vector network analyzer (VNA) with >115 dB dynamic range
• Optional spectrum analyzer (SA) and real-time spectrum analyzer (RTSA) with 120 MHz gap-free bandwidth
• Built-in power meter and vector voltmeter options
• Extended range transmission analysis (ERTA) and noise figure measurements
• Over-the-air (OTA) measurements for 5G NR and LTE
• 5G TF and LTE demodulation with PathWave Vector Signal Analysis software option
• I/Q capture and analysis capability
• GPS/GNSS receiver for geolocation and timestamping
• QuickCal, CalReady, and InstaAlign calibration methods
– Typical Applications
• Cable and antenna characterization and fault location
• S-parameter and transmission line analysis
• Spectrum monitoring and signal detection
• 5G/LTE signal demodulation and analysis
• Field installation and commissioning of RF systems
• Noise figure assessment
– Compatibility & Integration
Connectivity: USB, LAN, Bluetooth
Software: FieldFox DataLink for data analysis and reporting; PathWave Vector Signal Analysis (89600 VSA) software available
Automation: SCPI command support
