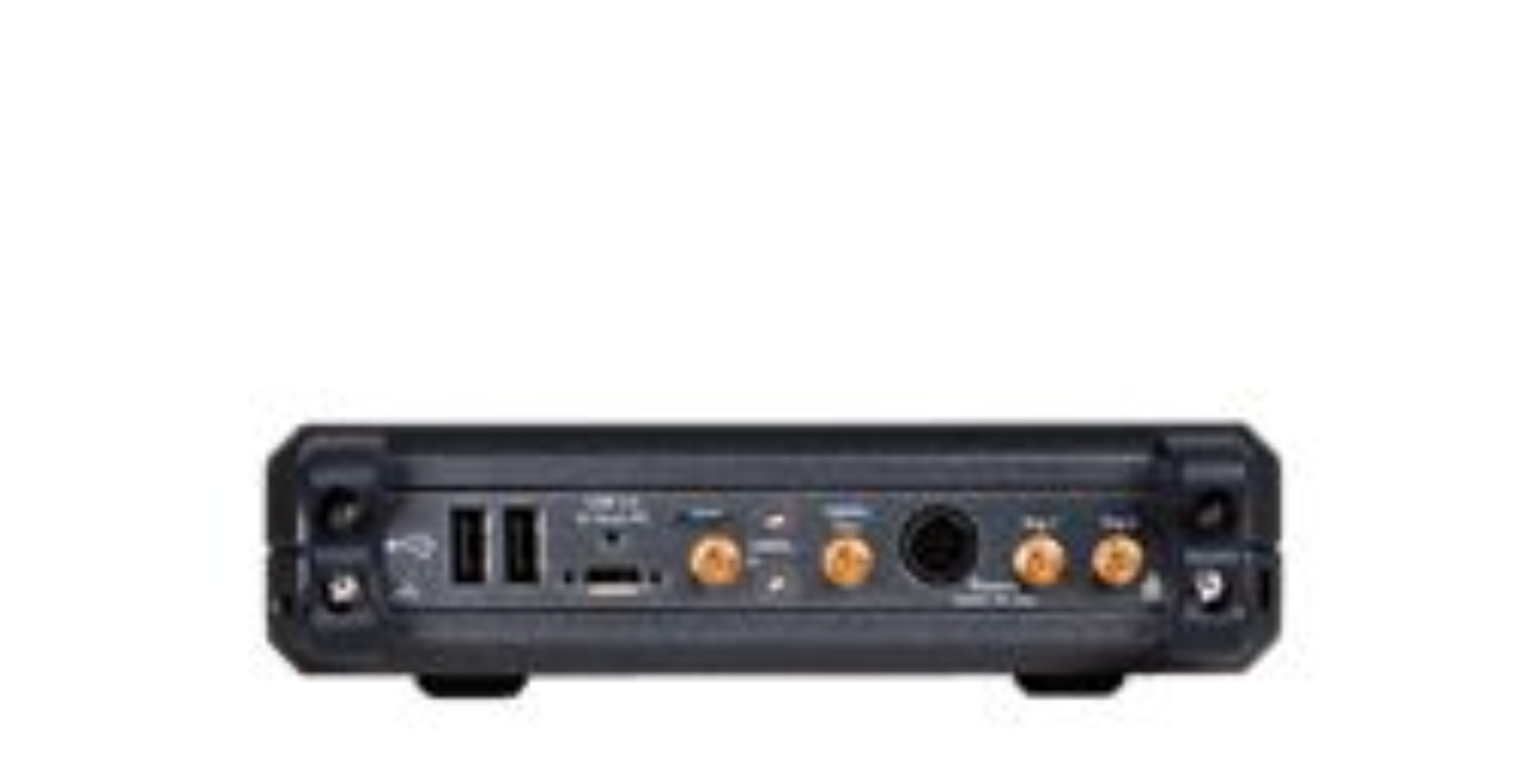

The Keysight P5008A is a 2-port Vector Network Analyzer delivering RF and microwave component characterization from 100 kHz to 53 GHz. This compact, USB-controlled instrument combines high dynamic range performance with measurement science proven across Keysight’s VNA portfolio, enabling engineers to achieve consistent, repeatable results in both R&D and manufacturing. The rackmount form factor minimizes test station footprint, making it ideal for space-constrained applications.
– Technical Specifications
Frequency Range: 100 kHz to 53 GHz
Dynamic Range: 101 dB
Output Power: -12 dBm
Power Sweep Range: -50 dBm to -12 dBm
Noise Floor: -113 dBm
Harmonics: -17 dBc
Port Impedance: 50 Ohms
IF Bandwidth: 10 Hz
Port Configuration: 2 Ports, 1.85 mm female connectors
Dimensions: 176 × 48 × 333 mm
– Key Features
• S-parameter, gain, noise figure, linearity, power handling, and frequency response measurements
• Optional pulsed-RF, time domain analysis, noise figure with vector correction, spectrum analysis, and scalar mixer/converter measurements
• Full electronic calibration (ECal) module support with directivity, source match, load match, reflection tracking, and transmission tracking standards
• USB 3.0 host control; GPIB, USB, Ethernet/LAN, and RS-232 remote control interfaces
• Corrected error terms for transmission and reflection uncertainty
– Typical Applications
• Component characterization and device validation
• Manufacturing test and verification
• Fixture removal and time domain analysis
• Gain compression and multiport calibrated measurements
• Vector signal analysis and spectrum analysis
– Compatibility & Integration
The P5008A accepts all Keysight electronic calibration modules and integrates with standard laboratory automation frameworks via multiple control interfaces.
