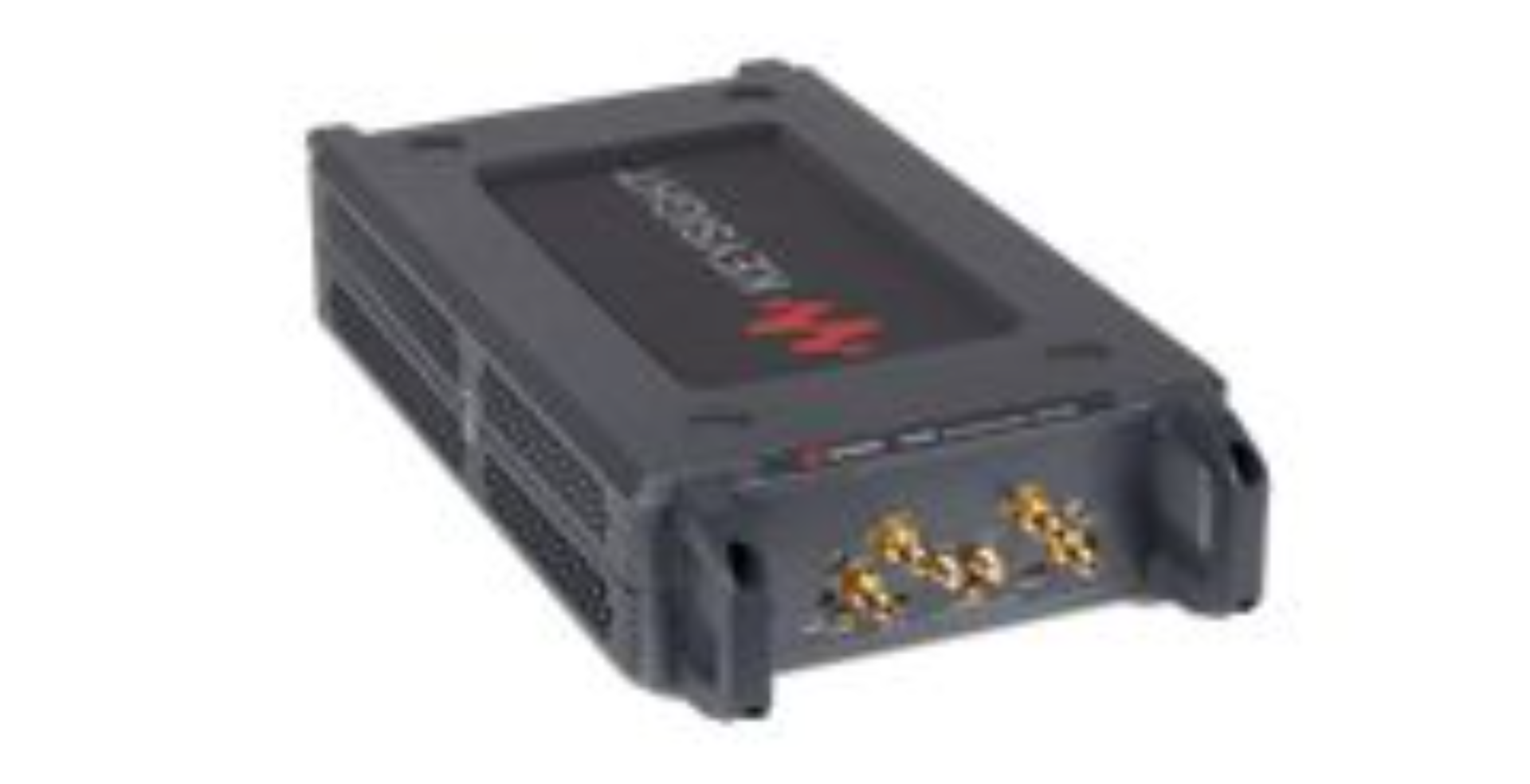

Agilent/Keysight P5022B

The Keysight P5022B Streamline is a PC-based vector network analyzer delivering 9 kHz to 9 GHz measurements across 4-port or 6-port configurations. Connected via Thunderbolt 3 interface, this lightweight instrument operates directly from a host PC and can be transported one-handed, making it ideal for field work and space-constrained environments. The P5022B combines 146 dB dynamic range with fast measurement speeds, low trace noise, and excellent temperature stability for characterizing RF and microwave components, passive devices, amplifiers, and frequency converters.

– Technical Specifications

• Frequency Range: 9 kHz to 9 GHz
• Port Configurations: 4-port (Option 400) or 6-port (Option 600)
• Dynamic Range: 146 dB
• Input Impedance: 50 Ω
• Test Port Connectors: 3.5 mm (f)
• Interface: Thunderbolt 3 (USB Type-C connectors)
• Sweep Types: Linear, Log, Segment, CW, Power, DC Source
• Calibration: Electronic Calibration (ECal) module support

– Key Features

• Delivers fast, reliable, and repeatable measurements with wide dynamic range and excellent temperature stability
• Identical GUI, SCPI commands, and measurement science as higher-performance Keysight VNAs
• Full N-port calibration capability
• S-parameter measurements for high-power devices
• Optional second source available on 4-port models (Option 402)
• Cascadable with additional VNA units for multiport calibrated measurements
• No onboard data storage memory—suitable for classified environments

– Typical Applications

• Passive component characterization
• Amplifier and frequency converter testing
• High-power device S-parameter measurement
• Frequency offset mode analysis (Option S97082B)
• Pulse generation and modulation (Options S970250B/S970251B)
• Noise figure measurement (Option S97029B)
• Time domain reflectometry (Option S97011B)
• Direct Receiver Access (DRA) configurations

– Compatibility & Integration

The P5022B connects directly to host PCs via Thunderbolt 3, eliminating the need for external instrumentation. Multiple units cascade for expanded port counts while maintaining calibrated multiport measurement capability.
