Agilent/Keysight P5028B

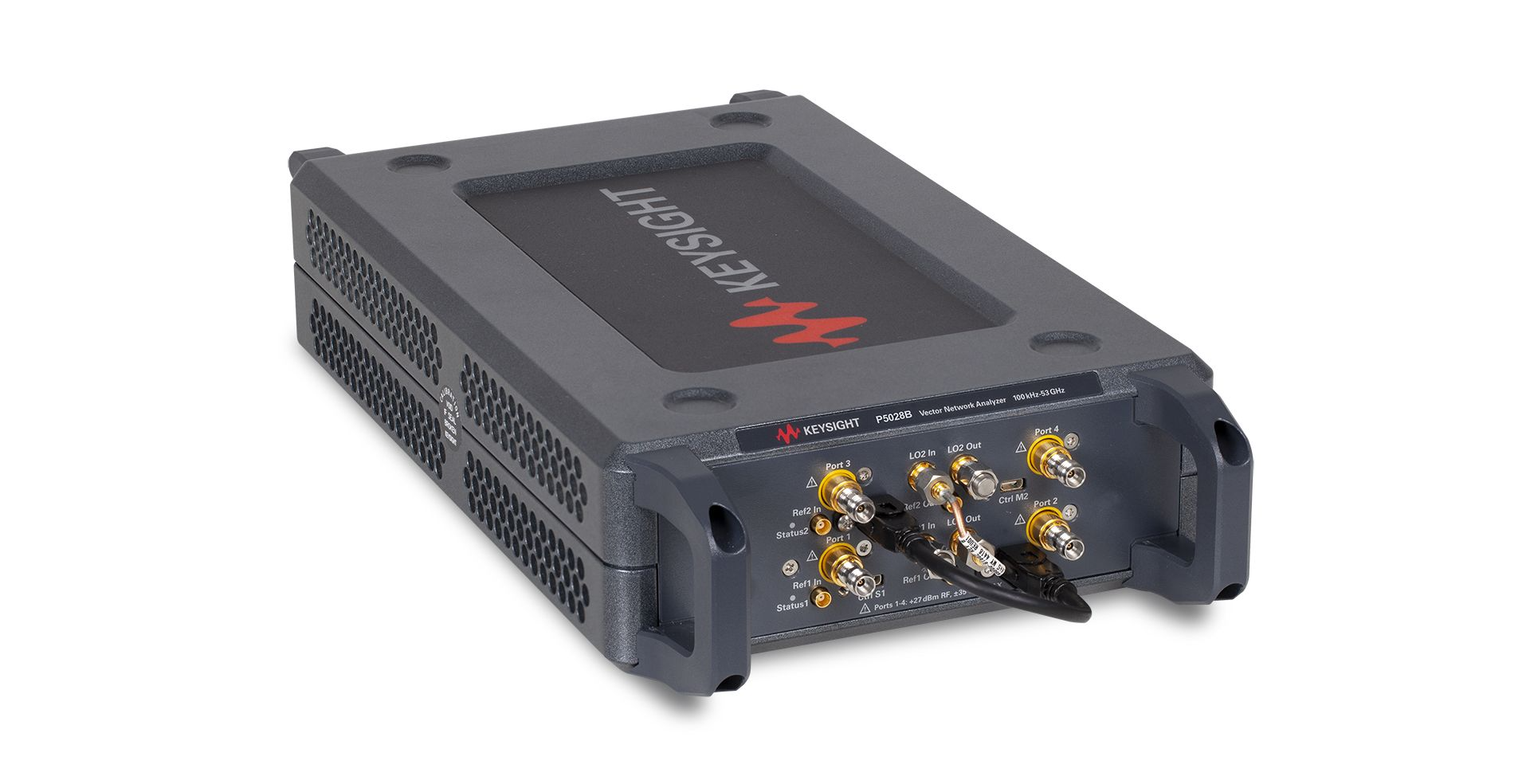

The Keysight P5028B is a compact, four-port Vector Network Analyzer from the Streamline series designed for RF and microwave component characterization from 100 kHz to 53 GHz. This faceless, portable instrument delivers advanced measurement capabilities comparable to benchtop VNAs while maintaining a small footprint suitable for space-constrained environments. Connected via Thunderbolt 3 interface, the P5028B enables high-speed data transfer to a host PC and supports a comprehensive suite of measurement applications including time-domain analysis, noise figure measurement with vector correction, gain compression analysis, and spectrum analysis.

– Technical Specifications

• Frequency Range: 100 kHz to 53 GHz (settable to 54 GHz)
• Ports: 4 with 1.85 mm (f) test port connectors
• Input Impedance: 50 Ω
• Output Power: 10 dBm
• Dynamic Range: 101 dB to 140 dB (configuration-dependent)
• Trace Noise: 0.0015 dB rms at 10 kHz IFBW
• Host Interface: Thunderbolt 3 (USB Type-C)

– Key Features

• Lightweight, single-hand portable design with minimal footprint
• Electronic calibration (ECal) module support for rapid calibration cycles
• Optional second source on 4-port models (Option 402)
• Multiport cascading capability—extend test capacity by chaining two instruments
• No onboard data storage—suitable for classified/secure environments
• Identical measurement science, GUI, and SCPI command set as Keysight benchtop VNAs

– Measurement Capabilities

• Pulsed-RF analysis and automatic fixture removal
• Time-domain reflectometry (TDR) and time-domain analysis
• Noise figure measurement with vector correction
• Embedded local oscillator functionality
• Gain compression characterization
• Spectrum analysis mode

– Typical Applications

Passive components, amplifiers, mixers, frequency converters, and integrated RF subsystem testing.
