Agilent/Keysight P9164A

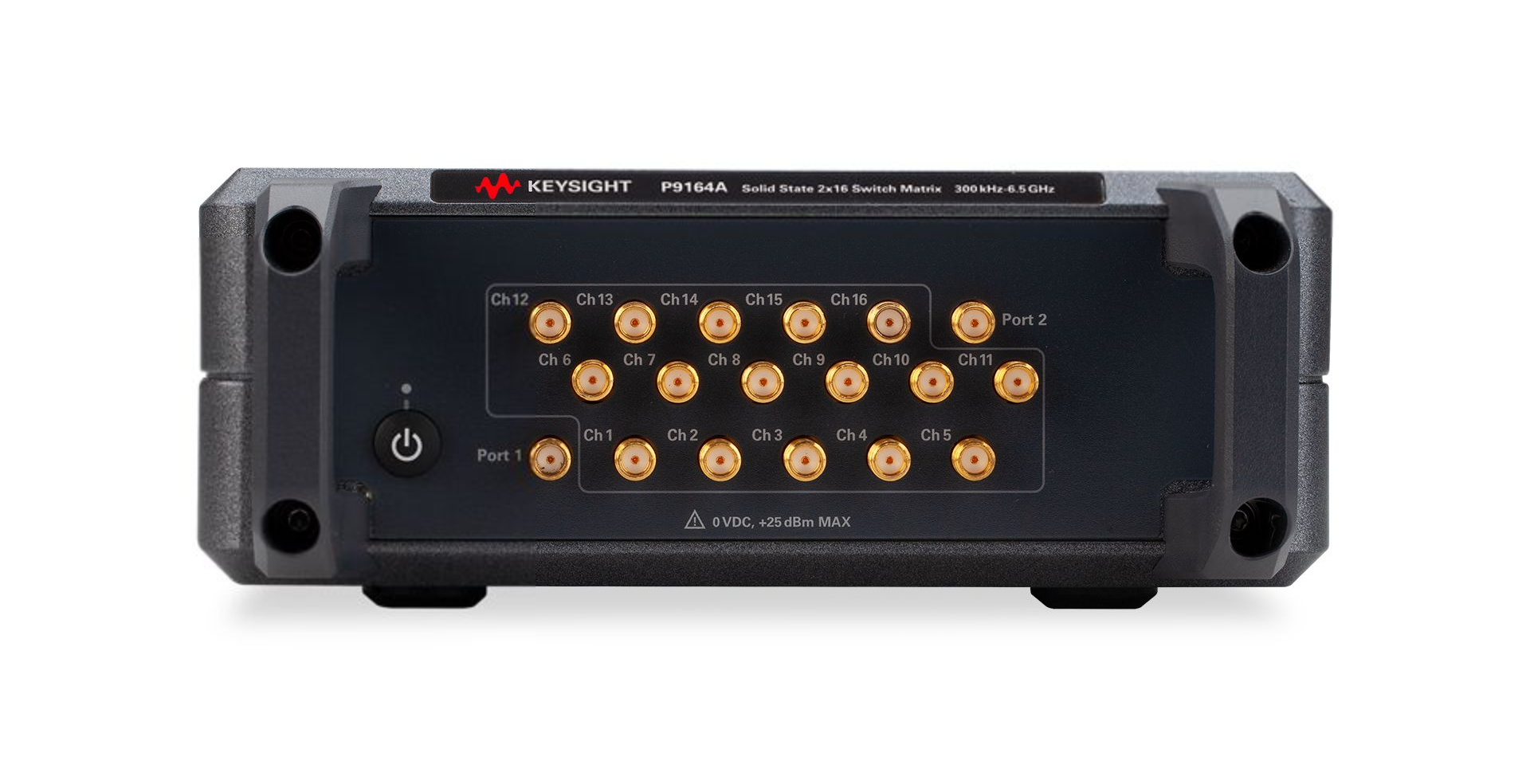

The Keysight P9164A is a 2×16 USB solid-state switch matrix that enables multiport vector network analyzer (VNA) solutions for complex RF test environments. This full crossbar switching device streamlines VNA calibration and measurement workflows, including 5G massive MIMO antenna characterization. Operating from 300 kHz to 6.5 GHz, the P9164A delivers exceptional isolation performance—87 dB at 300 kHz to 2 GHz and 85 dB from 2 to 6.5 GHz—minimizing crosstalk in dense automated test systems. The module features CMOS-based SPDT and SP4T switches with 50 µs switching speed and ultra-long cycle life, reducing overall cost of test. Internally terminated output ports maintain 50 ohm impedance when not in use, ensuring signal integrity.

– Technical Specifications

• Configuration: 2×16 full crossbar switch matrix
• Operating Frequency Range: 300 kHz to 6.5 GHz
• RF Connector: SMA (female)
• Isolation: 87 dB (300 kHz–2 GHz); 85 dB (2–6.5 GHz)
• Maximum Input Power: 25 dBm
• Typical P1dB: 25 dBm
• Typical TOI: 54 dBm
• Switching Speed: 50 µs (10%–90% trigger response)
• Dimensions: 68.2 × 176 × 332.8 mm
• Weight: 2.65 kg

– Key Features

• CMOS solid-state architecture with no mechanical wear
• USB control interface with Soft Front Panel and IVI command support
• Temperature-stabilized performance for reliable operation
• Internal 50 ohm termination on unused ports
• Compact, portable form factor for multi-location deployment
• Standalone switching capability independent of VNA integration

– Typical Applications

• Multiport VNA measurements for antenna arrays and MIMO systems
• High-density automated test environments requiring low crosstalk
• RF component characterization across wide frequency spans
• Flexible switching matrix configurations

– Compatibility & Integration

The P9164A integrates with Keysight’s P50xxA streamline series VNAs. Operation is via USB-based Soft Front Panel software or host computer IVI commands. Indoor use in low-condensation environments.
