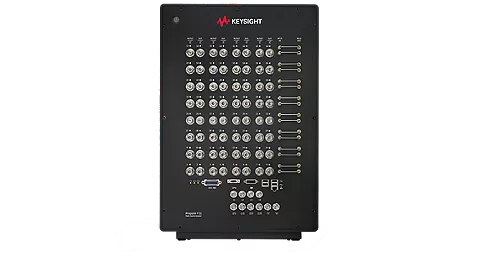

Agilent/Keysight PROPSIM F32

The Keysight PROPSIM F32 is a versatile channel emulator designed for comprehensive testing of wireless communication systems, including advanced LTE-Advanced performance testing, MIMO OTA (Over-the-Air) testing, and MANET (Mobile Ad Hoc Network) emulation. It is engineered to simulate realistic and complex radio channel conditions, enabling engineers to evaluate the performance of devices and networks under various real-world scenarios in a laboratory environment. The PROPSIM F32 supports a wide array of wireless standards and offers a flexible platform for advanced wireless testing.

### Technical Specifications

* **Frequency Range:**
* 30 MHz to 2700 MHz
* 350 MHz to 6000 MHz
* **Instantaneous Bandwidth:**
* 40 MHz
* 80 MHz
* **RF Interface Channel Configurations:**
* 8, 16, 24, or 32
* Up to 32 bi- and unidirectional RF interface channels
* **Internal Channels:**
* 128 internal channels for flexible multi-link scenario testing
* **MIMO Emulation:**
* 2×2, 4×2, 4×4, 8×2, 8×4
* 8×8, 10×10, 16×8
* Up to 64×4
* Up to 64×8
* MU-MIMO testing, e.g., 10x UE and 2x eNB / 4x UE and 4 x eNB
* Uplink MIMO, LTE 3D beamform testing, e.g., 16×8-Bi or up to 64×4-Bi
* **MANET Emulation:**
* Up to 32 radios in chain
* Up to 11 radios in full mesh network topology
* **Supported Wireless Standards:**
* LTE
* LTE-Advanced
* LTE Carrier Aggregation (up to 8CC bands, each 40MHz wide)
* WCDMA
* GSM
* TETRA
* 3G
* WLAN
* DVB-T/H
* HSPA
* V2X (Vehicle-to-Everything)
* Device-to-Device (D2D)
* **Fading Types:**
* Constant, Rayleigh, Rice, Nakagami, Lognormal, Suzuki, Pure Doppler, flat, rounded, Gaussian, Jakes, Butterworth, User-defined
* **Delay:**
* Up to 3000 µs
* **Input Power:**
* -50 dBm to 25 dBm
* -40 dBm to 25 dBm
* **Output Power:**
* -14 dBm to -120 dBm
* 6 dBm to 16 dBm (Peak)
* **Output Power Resolution:**
* 0.1 dB
* **Output Noise Floor:**
* -165 dBm/Hz typical (output RMS level < –40 dBm) * **Residual EVM:** * OFDMA 20 MHz BW < –45 dB typical### Interfaces and Control* **RF Interface Channel Configurations:** 8, 16, 24, or 32 RF interface channels. The PROPSIM F32 supports up to 32 bi- and unidirectional RF interface channels. * **Internal Channels:** 128 internal channels for flexible multi-link scenario testing. * **ATE Remote Control Interface:** GPIB and LAN. * **Compatibility:** Compatible with other Propsim products for test automation script transfer and sharing.### Physical Characteristics* **Form Factor:** Benchtop. * **Package Type:** Benchtop.### Additional Capabilities and Features* **LTE-Advanced Performance Testing:** Validated capabilities for LTE-Advanced. * **MIMO OTA Testing:** Compliant with draft CTIA specifications for MIMO OTA testing of LTE transmission modes in anechoic chamber installations. Supports up to 12x faster device MIMO OTA testing with FAST-OTA capability. * **Geometric Channel Modeling Tool (GCM):** Supports Keysight's PROPSIM Geometric Channel Modeling Tool (GCM) for creating complex channel models and test scenarios. * **Multi-RAT Testing:** Supports multi-RAT live network and device testing, including multi-cell LTE, HSPA, and GSM. * **Interference Generation:** Integrated synchronous LTE Network interference generation. * **Calibration:** Fully automated phase and amplitude calibration without external VNA. * **Test Automation:** Automated 24/7 testing support. * **Setup Wizard:** Features a Setup Wizard with guided steps for test scenario creation and editing. * **Built-in Measurement:** Includes built-in input power measurement. * **Dual Connectivity Testing:** Supports LTE small cells and dual connectivity testing. * **Virtual Drive Testing:** Supports Multi-RAT Virtual Drive Testing for advanced troubleshooting of field issues and benchmarking. * **Proprietary and Professional Radio Systems:** Ideal for developing new technologies and solutions for proprietary and professional radio systems. * **Channel Models:** Contributes to industry-standard channel models including Winner, Winner II, 3GPP, CTIA, ITU, and METIS (5G).### Supported Applications* **End-to-End Performance Testing:** VoLTE, Data Throughput, fallback scenarios to legacy technology, cell selection/re-selection scenarios. * **LTE 3D MIMO Technology Testing:**. * **WLAN, V2X, and Device-to-Device Testing:**. * **Chipset, Device, and Base Station Testing:** For LTE-A multi-mode applications. * **CTIA/3GPP/CCSA MIMO OTA Device Testing:** In anechoic chambers. * **Mobile Ad Hoc Network (MANET) and MESH Network Radio Testing:**. * **Automotive 802.11p V2X Radio Testing:**.Why Choose Aumictech for Keysight PROPSIM F32? At Aumictech, we specialize in supplying high-end wireless communication test equipment. Whether you need advanced LTE-Advanced performance testing, comprehensive MIMO OTA evaluations, or complex MANET emulation capabilities, our team ensures the Keysight PROPSIM F32 delivers maximum performance for your application.
