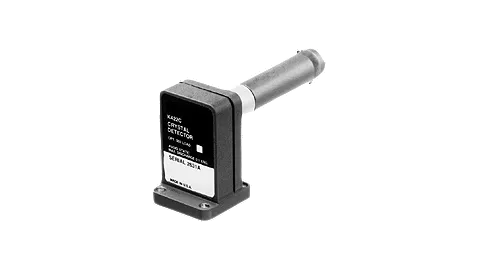

Agilent/Keysight R422C

The Agilent/Keysight R422C is a waveguide detector for microwave signal detection and measurement across the 26.5 to 40 GHz band. It bridges waveguide and coaxial transmission lines with a GaAs planar-doped barrier diode, delivering negative polarity output and operating reliably from −65°C to +100°C.

– Technical Specifications

• Frequency Range: 26.5 to 40 GHz
• Frequency Response: ±0.6 dB
• Low-Level Sensitivity: >0.42 mV/µW
• Maximum Input Power (Average): 100 mW
• Short-Term Maximum Input (<1 minute): 1 watt
• Standing Wave Ratio (SWR): 1.78 maximum
• Video Impedance: 1.5 kΩ nominal (0.5 kΩ to 5 kΩ range)
• RF Bypass Capacitance: 10 pF
• Noise (400 kHz BW, CW at 100 mV output): <50 µV peak-to-peak

– Key Features

• Negative output polarity for direct integration with measurement systems
• Wideband frequency response maintains ±0.6 dB flatness across the Ka-band spectrum
• Low SWR of 1.78 minimizes reflections and measurement uncertainty
• Excellent sensitivity exceeding 0.42 mV/µW supports detection of weak signals
• Video impedance of 1.5 kΩ nominal accommodates standard measurement instrument inputs
• Operating temperature range −65°C to +100°C with MIL-STD-883 thermal cycling qualification ensures performance in demanding environments
• Handles sustained 100 mW average power with 1 watt transient capability

– Typical Applications

• Ka-band microwave power measurement and monitoring
• Waveguide-based signal detection in test and measurement systems
• Microwave systems requiring precise low-level signal detection
• Military and aerospace microwave test applications

– Compatibility & Integration

• Waveguide Input: EIA WR-28 (MIL-W-85/3-008, MIL-W-85/3-006)
• Waveguide Flange: UG-599/U per MIL-F-3922/54-003
• Output Connector: BNC female
• Shipping Weight: 6 lb
