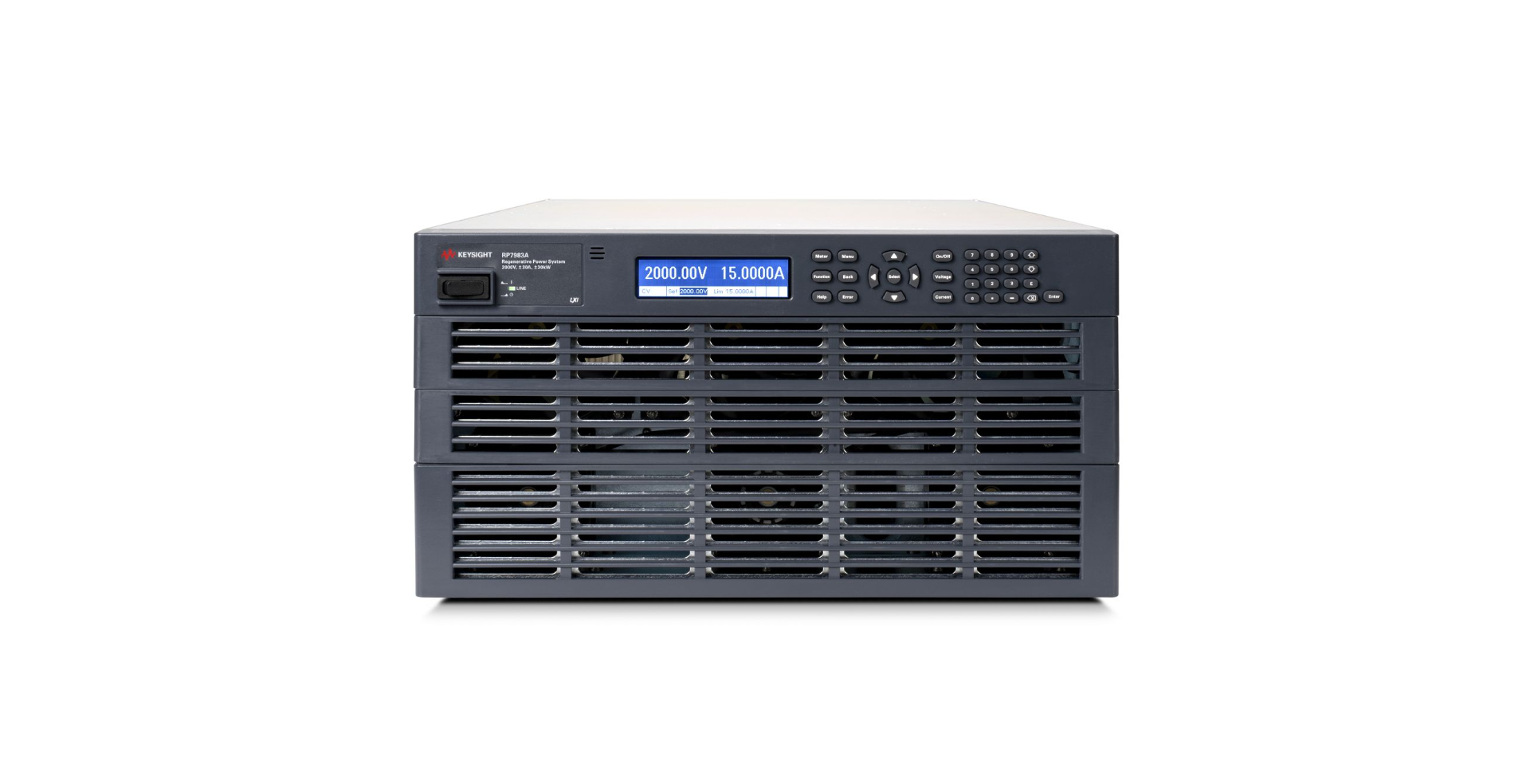

The Keysight RP7984A is a bidirectional, regenerative DC power system engineered for high-voltage and high-power testing. Operating in two-quadrant mode, it functions as both a precision power source and electronic load, sourcing and sinking current without output characteristic changes. This capability makes it ideal for battery emulation, converter characterization, and HEV/EV validation. The unit returns up to 90% of power to the grid, reducing energy costs and cooling requirements.
Autoranging output expands the voltage-current power curve, delivering more operating combinations from a single instrument. An integrated arbitrary function generator enables transient simulation for dynamic testing. Battery emulation includes programmable internal resistance up to 50 Ω and simulates charge states and operating life. Photovoltaic mode simulation supports inverter testing under realistic PV conditions. Command processing occurs at sub-millisecond speed with fast output response.
The RP7984A connects via LAN (LXI Core), USB, and GPIB for remote control and integration into automated test systems. Units parallel easily to create higher power configurations—up to 150 kW through straightforward parallel connection. Input voltage ranges from 380 V to 480 VAC at ±10% tolerance (three-phase), with 0.99 power factor. Housed in a 5U-high 19-inch rack enclosure measuring 765 × 427 × 221 mm and weighing 57.2 kg, the RP7984A delivers 30 kW maximum output at up to 1500 V and ±60 A.
– Technical Specifications
• Output voltage: 0–1500 V DC
• Output current: ±60 A
• Maximum power: 30 kW
• Input: 380–480 VAC, ±10%, three-phase, 0.99 power factor
• Command processing: Sub-millisecond
• Battery emulation resistance: Up to 50 Ω programmable
• Regenerative efficiency: Up to 90% power return to grid
• Parallel capacity: Up to 150 kW (easy connection)
– Key Features
• Two-quadrant source/sink operation for bidirectional power flow
• Autoranging output characteristic for expanded voltage-current combinations
• Integrated arbitrary function generator for transient simulation
• Battery emulation with charge-state and internal-resistance modeling
• Photovoltaic system simulation for inverter testing
• LAN (LXI Core), USB, and GPIB interfaces
• Fast output response with sub-millisecond command settling
– Typical Applications
• HEV/EV power converter validation
• Energy storage system testing
• Battery pack characterization and life simulation
• DC-DC and DC-AC converter development
• Photovoltaic inverter testing
• Dynamic power flow and transient response analysis
– Compatibility & Integration
The RP7984A integrates into Keysight’s HEV/EV power converter test solutions. Multiple units parallel for system-level testing requiring higher power or loading. Standard interfaces support integration into automated production and R&D test environments.
