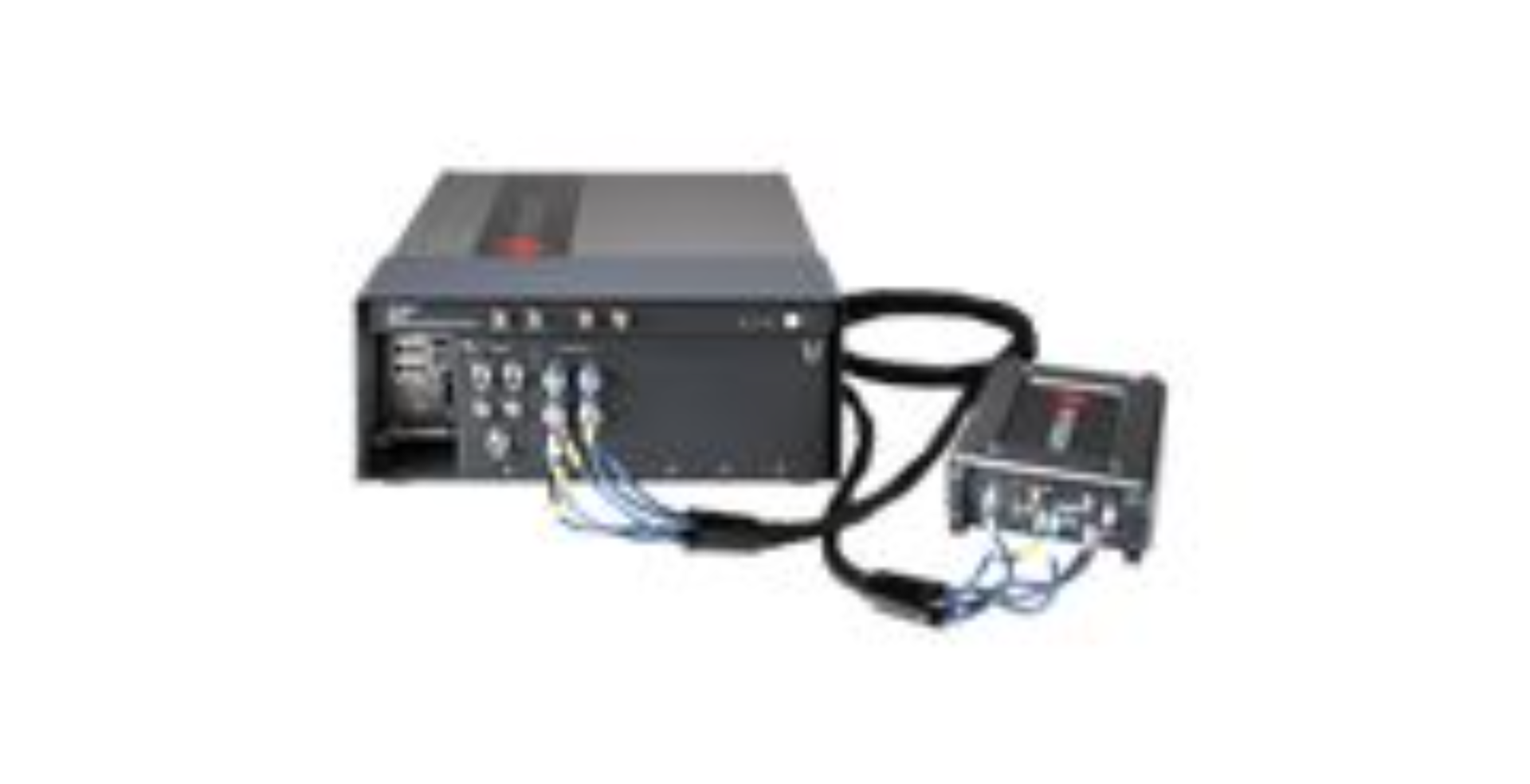

Agilent/Keysight S9130A 5G Performance Test Solution

The Keysight S9130A is a 5G Performance Multi-Band Vector Transceiver designed for high-performance testing of 5G NR network equipment and radio components. It is particularly suited for testing 5G NR high-performance base station transceiver systems, as well as components such as remote radio heads (RRH), distributed units (DU), active antenna arrays, amplifiers, and chipsets. The S9130A leverages Keysight’s PXI vector transceiver platform to offer a compact test system with excellent Error Vector Magnitude (EVM) and Adjacent Channel Leakage Ratio (ACLR) performance, making it suitable for both manufacturing and design verification testing.

### Technical Specifications

* **Frequency Coverage:**
* FR1: 380 MHz to 8 GHz (with a 12 GHz option available for extending the range)
* FR2: 24.25 GHz to 43.5 GHz
* **Bandwidth:**
* Generator/Analyzer Bandwidth: 1.2 GHz
* Maximum Bandwidth: 1.2 GHz
* **Technology:**
* 5G NR (3GPP Release 16 and higher)
* **Test Domain:** Performance
* **Test Types:**
* Over-the-Air (OTA)
* Interference Conformance
* Power
* Spectrum Emission Mask (SEM)
* Adjacent Channel Leakage Ratio (ACLR)
* Error Vector Magnitude (EVM)
* **Waveform Generation and Analysis:** Wideband signal generation and analysis of 5G NR waveforms
* **Architecture:**
* “OTA-friendly” expandable architecture designed to avoid high losses from switching and long cable runs.
* Supports one remote mmWave head.
* **Form Factor:** Benchtop
* **Performance Level:** Described as “5 out of 6 stars” (referring to a performance rating system).

### Electrical Specifications

* **Insertion Loss:** Approximately 0.25 to 0.5 dB between the S9130A front panel connectors and the M9415A module due to the M9155C switch module and cabling.
* **Input Power Stability:** The AC-DC adapter is certified to operate with mains supply voltage fluctuations up to ±10% of the nominal voltage.

### Interfaces

* **Connectivity:**
* USB
* RF Cable Bundle is supplied with the system for connecting the PXIe subsystem to the M1741A.
* **Licensing:**
* Supports various license types for measurement applications, including Node-locked, Transportable, USB portable, and Floating licenses.
* Licenses can be perpetual or time-based (6, 12, 24, or 36 months).
* Node-locked perpetual licenses can be factory-installed.

### Physical

* **Environmental Considerations:**
* Type tested in accordance with the Keysight Environmental Test Manual for robustness against storage, transportation, and end-use environmental stresses (temperature, humidity, shock, vibration, altitude, power line conditions).
* Test methods are aligned with IEC 60068-2 and similar to MIL-PRF-28800F Class 3.
* This equipment is Class A, suitable for professional use and electromagnetic environments outside of the home. It is not intended for use in residential environments.
* **Handling:**
* Requires two persons to lift and carry.
* Use both side handles when lifting.
* Use a rolling cart when transporting.

### Compatibility

* **PXIe Subsystem:** Can be integrated with a PXIe System Controller such as the Keysight M9037A or a customized PC with host adapter cards (e.g., M9048A, M9048B, M9049A) or system modules (e.g., M9022A, M9023A, M9024A).
* **Software:**
* Compatible with X-Series Measurement Applications (X-App).
* Optional factory-configured measurement applications include N9085EM0E (5G NR Measurement Application) and Y9085EM0E (5G NR Waveform and Measurement Application).
* Additional recommended software (user-installed) includes N7631EMBC Signal Studio Pro for 5G NR, N7630EMBC for pre-5G, and 89600 VSA software.
* KS8400A Test Automation Platform is also compatible.
* **Modules:**
* Features a FR1 transceiver and a mmWave transceiver.
* Uses an M9155C switch module and cabling, contributing to insertion loss.
* The performance characteristics are based on the Keysight M9415A PXIe VXT Vector Transceiver module.
