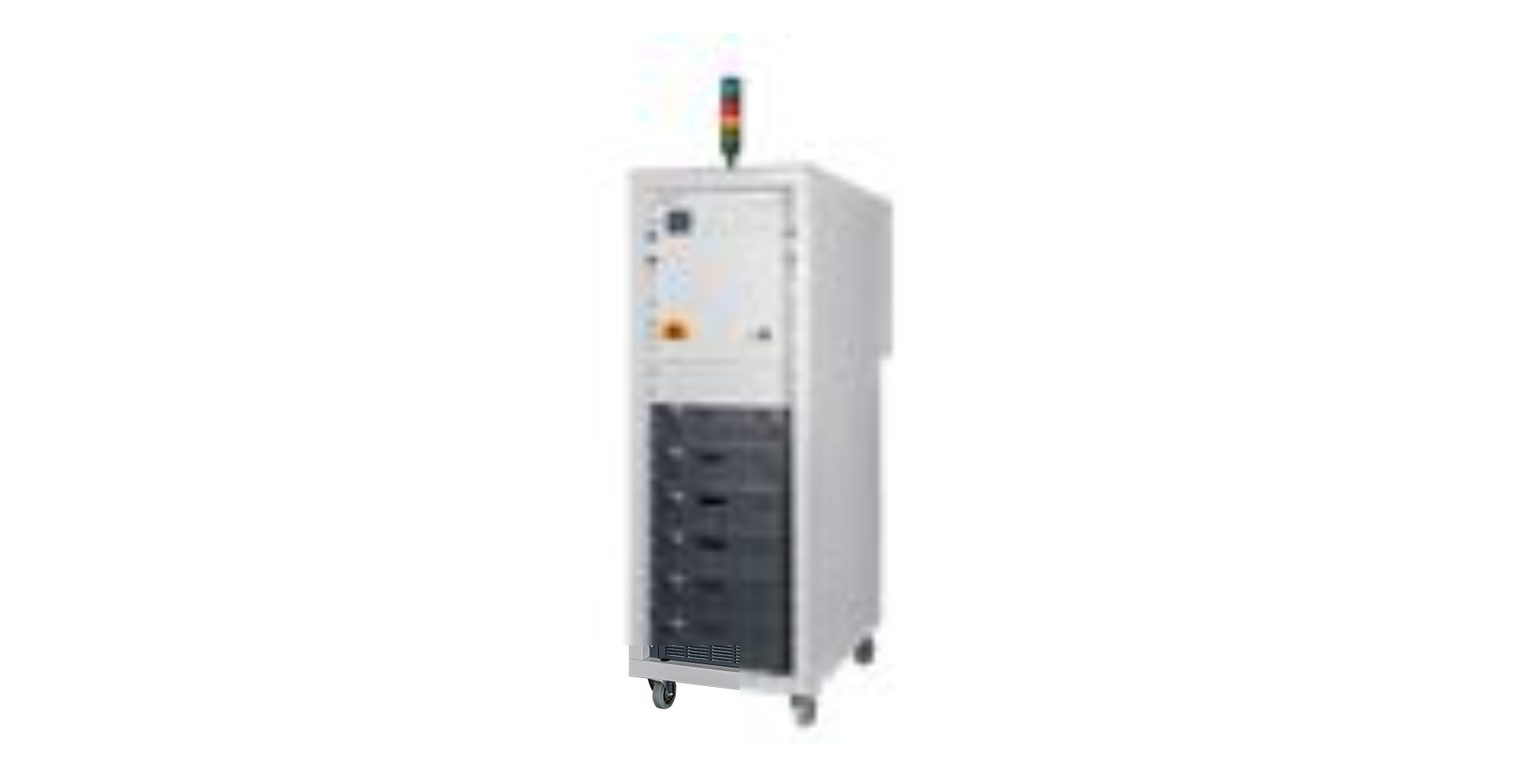

Agilent/Keysight SL1202A AC Source Module

The Keysight SL1202A is a 3-phase AC emulator designed for advanced electronic testing applications. It offers regenerative, bidirectional power capabilities with high efficiency, making it suitable for research, development, and manufacturing environments. This module supports versatile testing needs, including applications such as electric vehicle supply equipment (EVSE) and EV charging testing, as well as low-voltage inverter testing.

### Technical Specifications

* **Model:** Keysight SL1202A
* **Product Type:** Scienlab Regenerative 3-Phase AC Emulator
* **AC Output Voltage (3-Phase):**
* 346 V Line-to-Neutral / 600 V Line-to-Line
* Can achieve up to 1200 V Line-to-Line with higher voltage range models in the series, or by paralleling units, but the SL1202A itself is specified at 600 V L-L.
* **AC Output Current (3-Phase):** 63 A
* **AC Output Power:**
* 45 kW
* 66 kVA
* **Frequency Range:** 40 to 75 Hz
* **Regenerative Capability:** 100% regenerative (bidirectional power solution) with over 85% efficiency

### Electrical Specifications (with Option SDC)

* **DC Output Voltage:** ±500 V
* **DC Output Current:** ±180 A
* **DC Output Power:** 60 kW

### Interfaces and Control

* **Software Front Panel (SFP):** Intuitive user interface for configuration and operation
* **Test Automation:** Compatible with Keysight’s KS8400B PathWave Test Automation software and SL1220A Test Sequencer plugin (licenses may be required for software).

### Physical Specifications

* **Rack Size:** 1.3 m rack

### Compatibility and Application Notes

* **Paralleling Capability:** Up to nine units of the same model can be paralleled for higher power output.
* **Harmonic Measurement:** Capable of injecting and measuring even and odd harmonics and interharmonics up to the 50th order.
* **Test Standards:** Designed to test to standards such as IEC 61000, UL 1741 SB, IEEE 1547-2018 / 1547.1-2020, and GB/T 37408.
* **Applications:**
* EVSE / EV Charging Test
* Low Voltage Inverter Test
* High Voltage Ride-Through (HVRT) testing (achieved with 1200 VAC models or paralleled configurations).
