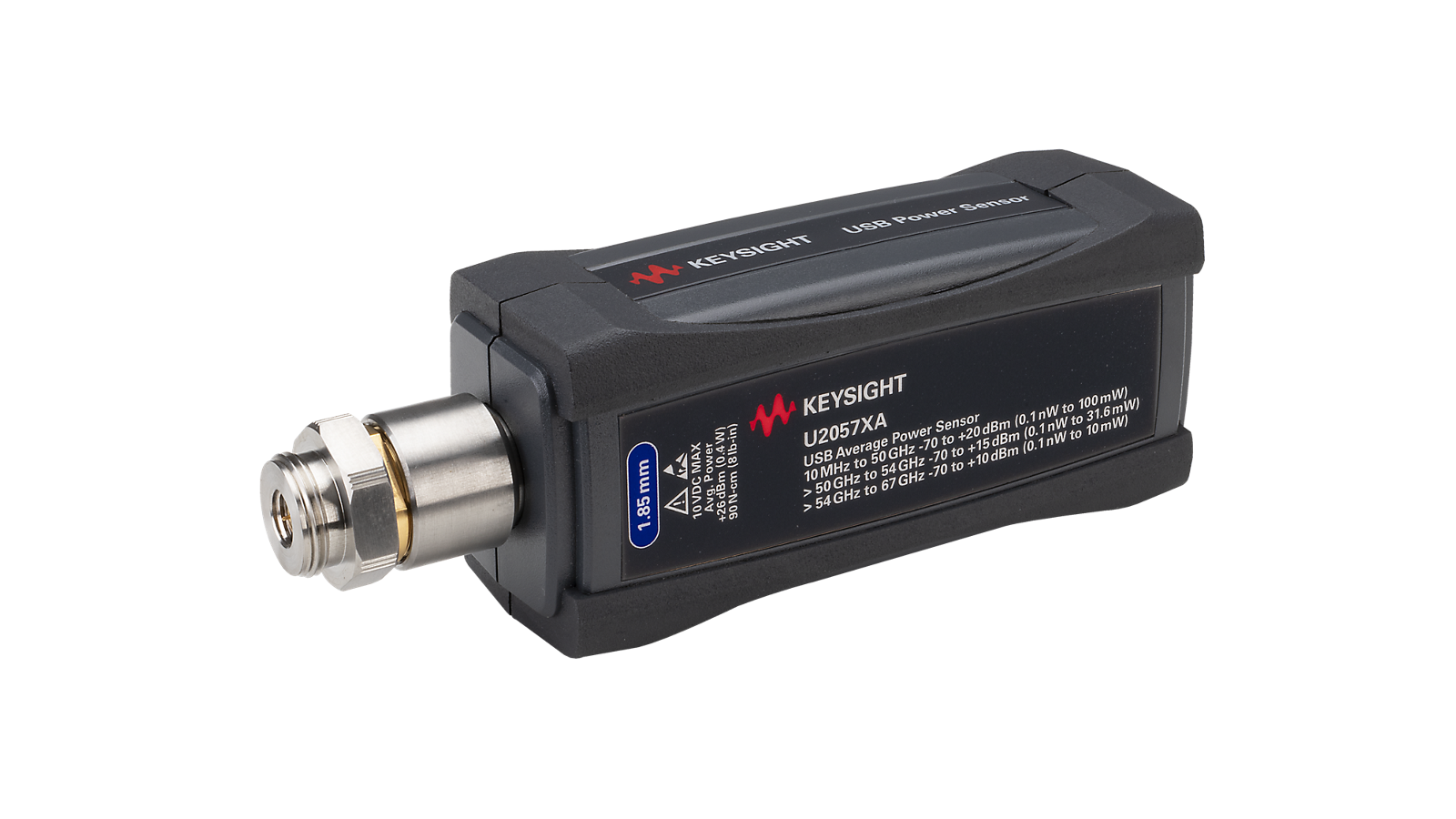

Agilent/Keysight U2057XA

The Keysight U2057XA is a USB-connected average power sensor delivering high-speed, wide dynamic range measurements across 10 MHz to 67 GHz. Built for R&D, manufacturing, and field service environments, it combines real-time measurement capability—up to 50,000 readings/second—with zero dead time for continuous pulse characterization. The sensor maintains full dynamic range accuracy across modulated signals including GSM, EDGE, WCDMA, WLAN, LTE, and DME, eliminating the need for manual attenuation switching during measurements.

– Technical Specifications

• Frequency Range: 10 MHz to 67 GHz
• Dynamic Range: −70 to +20 dBm (10 MHz to 50 GHz); −70 to +15 dBm (>50 GHz to 54 GHz); −70 to +10 dBm (>54 GHz to 67 GHz)
• Measurement Speed: Up to 50,000 readings/second (real-time)
• Connector: 1.85 mm male
• Interface: USB
• Calibration: Internal zero and automatic calibration

– Key Features

• Zero dead time enables continuous pulse measurement without data loss
• Average mode with time-selectivity function provides full dynamic range on both average and time-selective average power measurements
• Accurate, repeatable results across any modulated signal type
• Internal zero and automatic calibration reduce setup time and measurement uncertainty
• Built-in signal presets for GSM, EDGE, WCDMA, WLAN, LTE, and DME

– Typical Applications

• RF/microwave component characterization and validation
• Manufacturing test and quality assurance
• Field service and on-site power verification
• Modulated signal power measurement across modern wireless standards

– Compatibility & Integration

The U2057XA integrates with Keysight BenchVue software via the Basic Power Meter/Sensor Control and Analysis App (BV0007B). Application notes document compatibility with Keysight network analyzers for source power calibration workflows. Supplied with 1.5 m power sensor cable, two 50 Ω trigger cables (BNC male to SMB female), and calibration certificate.
