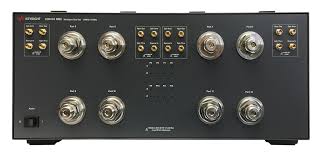

Agilent/Keysight U3047AM08

The Keysight U3047AM08 is an 8-port mechanical test set that extends the measurement capabilities of 4-port network analyzers. When combined with a Keysight PNA or PNA-X series analyzer, it enables complete 12-port full crossbar measurements and supports N-Port calibration. This multiport architecture allows characterization of complex devices and systems where traditional 4-port analysis proves insufficient.

The unit operates across a frequency range of 10 MHz to 67 GHz, making it suitable for applications spanning microwave through millimeter-wave bands. Its mechanical switching architecture and high-quality connectors deliver repeatability across multiple measurement cycles, essential for production test and research environments.

– Technical Specifications

• Product Type: 8-Port Mechanical Test Set
• Frequency Range: 10 MHz – 67 GHz
• Port Count: 8 ports
• Maximum Port Configuration: 12-port full crossbar when integrated with 4-port network analyzer
• Calibration Support: N-Port calibration
• Connectors: High-quality mechanical switches and connectors
• Physical Dimensions: 24 × 20 × 16 in
• Weight: 50 lbs

– Key Features

• Expands 4-port analyzer to 12-port measurement capability
• Mechanical switching architecture for reliable port selection
• Operates from 10 MHz through 67 GHz
• Supports full crossbar interconnection patterns
• Compatible with N-Port calibration methodologies

– Typical Applications

• Telecommunications device characterization
• Aerospace and defense system testing
• Research and development of multiport RF networks
• Component and subsystem measurement requiring crossbar connectivity

– Compatibility & Integration

The U3047AM08 integrates directly with Keysight PNA and PNA-X series 4-port network analyzers. Integration enables full crossbar measurements without requiring separate multiport analyzer platforms, reducing capital equipment requirements while maintaining measurement accuracy across the extended port count.
