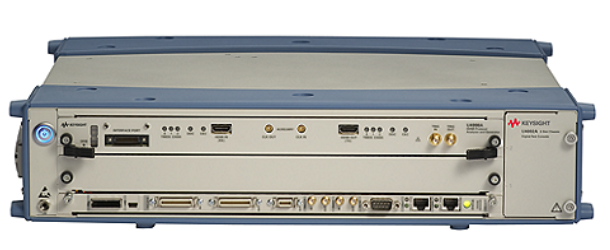

Agilent/Keysight U4002A

The Keysight U4002A is a 2-slot AXIe chassis that serves as a modular, scalable platform for high-density test and measurement systems. This half-width instrument accommodates application-specific blades alongside an integrated chassis manager, enabling portable deployments or lab installations with optional rackmount brackets. The architecture supports system expansion through multi-chassis networking and centralized control, making it ideal for complex testing workflows that demand high-performance instrumentation.

– Technical Specifications

-# Chassis and Backplane
• Slot Configuration: 2 total slots for application blades; bottom half-width slot dedicated to chassis manager
• Backplane Architecture: AXIe 1.0 compliant with Gigabit Ethernet switching, PCIe Gen 2 x4 lanes to each module slot, secondary PCIe data fabric, distributed Gigabit Ethernet LAN per slot, and 62-pair local bus for adjacent module signaling and data transfer
• Power Distribution: Managed across all blades through the backplane

-# Chassis Manager (U4002-00101)
• Blade insertion tracking and blade power management
• Thermal monitoring with variable-speed fan control
• Blade sensor monitoring and failure reporting to system log
• Gigabit Ethernet switching for inter-chassis communication
• Timing synchronization via Agilent Test Bus with internal or external clock sources
• PCIe (x4, Gen1/Gen2 compliant) interface for external system controller connection
• USB availability (not supported in initial release)

-# Connectivity Interfaces
• Gigabit Ethernet: Backplane interface with front panel RJ45 LAN connection; functions as network switch
• PCIe: Distributed Gen 2 fabric (x4 lanes per slot) from Embedded System Module to application blades
• Synchronization: Agilent Test Bus for multi-chassis timing; external trigger and clock inputs supported

– Key Features

• Modular AXIe platform combining VXIbus, LXI, and PXI standard integration
• Enhanced timing, triggering, and module-to-module data movement capabilities
• Scalable multi-chassis architecture with centralized management
• Integrated thermal and power management
• PCIe Gen 2 high-speed data fabric with distributed Ethernet

– Typical Applications

• Portable high-performance test systems
• Laboratory and field measurement deployments
• Complex signal processing and data acquisition
• Multi-instrument synchronization and control

– Compatibility & Integration

The U4002A integrates with AXIe-compliant application blades and supports external system controllers via PCIe. Multi-chassis systems connect through Gigabit Ethernet networking with centralized timing via the Agilent Test Bus, enabling distributed test architectures.
