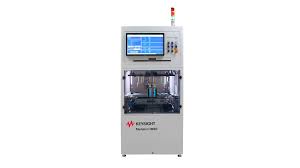

The Keysight U9405A is a compact in-circuit test (ICT) system for PCBA manufacturing, delivering the smallest inline automated footprint at 850 mm width. This Medalist i1000D platform supports both offline and inline configurations on a single hardware base, enabling efficient test program reuse and fixture investment protection across deployment modes. The U9405A accommodates PCBs from 50 mm × 50 mm to 430 mm × 300 mm with thickness ranging from 0.5 mm to 4.0 mm, and provides up to 1664 nodes or 512 nodes in Mini ICT specification.
– Technical Specifications
• Node Capacity: 1664 nodes standard; 512 nodes (Mini ICT)
• Footprint: 850 mm width (smallest inline automated ICT)
• PCB Dimensions: 50–430 mm × 50–300 mm
• PCB Thickness: 0.5–4.0 mm
• Component Clearance: 100 mm top; 40 mm bottom
• Guide Holes: 2–4 mm diameter, minimum 10 mm from center
• Fixture Actuation: Press down with automatic engagement
• Conveyor Belt Width: 3.0 mm
• Conveyor Height: 895–1,000 mm
• Board Markers: Up to 7
• Power Supply: 200–240 V AC, 50/60 Hz
• Air Pressure: 6–8 kg/cm²
• Conveying Direction: Left to right or right to left
– Key Features
• Boundary Scan, Cover-Extend Technology (CET), and Vectorless Test Extended Performance (VTEP 2.0) digital test capabilities
• Configurable offline and inline operation on shared platform
• SMEMA interface for integrated inline automation
• Auto Debug fine-tunes tests for production-ready results
• Statistical measures including CPK analysis
– Typical Applications
Inline and offline PCBA manufacturing test; contract manufacturing; high-volume electronics assembly requiring space-constrained test integration.
– Compatibility & Integration
• SCPI command support
• USB 2.0 interface (TMC-488.2 compliant)
• IVI-COM and LabVIEW drivers included
• External power supply support
• Test programs and fixtures developed offline transfer directly to inline deployment
