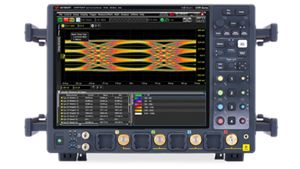

Agilent/Keysight UXR0702AP

The Keysight UXR0702AP Infiniium UXR-Series Oscilloscope is a real-time instrument engineered for high-speed signal acquisition and analysis in advanced electronic validation environments. Operating at 70 GHz bandwidth with upgrade capability to 110 GHz, this two-channel oscilloscope delivers 256 GSa/s sampling per channel with 10-bit ADC resolution. The instrument captures up to 2 Gpts of memory, enabling detailed transient analysis and high-speed data stream characterization. Its 1 mm connector inputs support direct connection to mmWave test environments, with optional 1.85 mm and 2.92 mm interface adapters for flexible integration across test setups.

– Technical Specifications

• Bandwidth: 70 GHz (upgradable to 110 GHz); frequency extension to 113 GHz available
• Channels: 2 full-bandwidth
• Sample Rate: 256 GSa/s per channel
• Memory Depth: Up to 2 Gpts (standard 200 Mpts)
• ADC Resolution: 10-bit
• Rise Time (10–90%): 7.5 ps
• Rise Time (20–80%): 5.3 ps
• Vertical Noise Floor: Less than 1 mVrms at 110 GHz
• Intrinsic Jitter: Less than 25 fs (rms)
• Inter-channel Jitter: Less than 10 fs (rms)
• Vertical Scale Range: 1 mV/div to 1 V/div (major settings); magnification scales 1–5 mV/div available
• Input Connectors: 1 mm (primary); 1.85 mm and 2.92 mm via adapters
• Power Input: 100–240 Vac

– Key Features

• Real-Time Spectrum Analyzer (RTSA) with analysis bandwidth of 40, 80, 160, or 320 MHz; total RTSA span 320 MHz simultaneously across all channels
• Low intrinsic jitter ensures precise timing measurements in high-speed applications
• Scalable memory architecture supports extended capture windows for complex signal events
• Dual-channel full-bandwidth architecture enables synchronous multi-point measurements

– Typical Applications

• High-speed serial link characterization and validation
• Millimeter-wave signal analysis and receiver testing
• Transient event capture in RF and microwave circuits
• Time-domain and frequency-domain analysis of broadband signals

– Compatibility & Integration

Includes USB keyboard, optical mouse, coaxial adapters (2.92 mm jack to 2.40 mm jack, 50 Ω; 1.85 mm female-to-female), torque wrench (8 lb-in), and ESD protection accessories. Standard vertical magnification scales maintain offset and DC gain accuracy above 4 mV/div.
