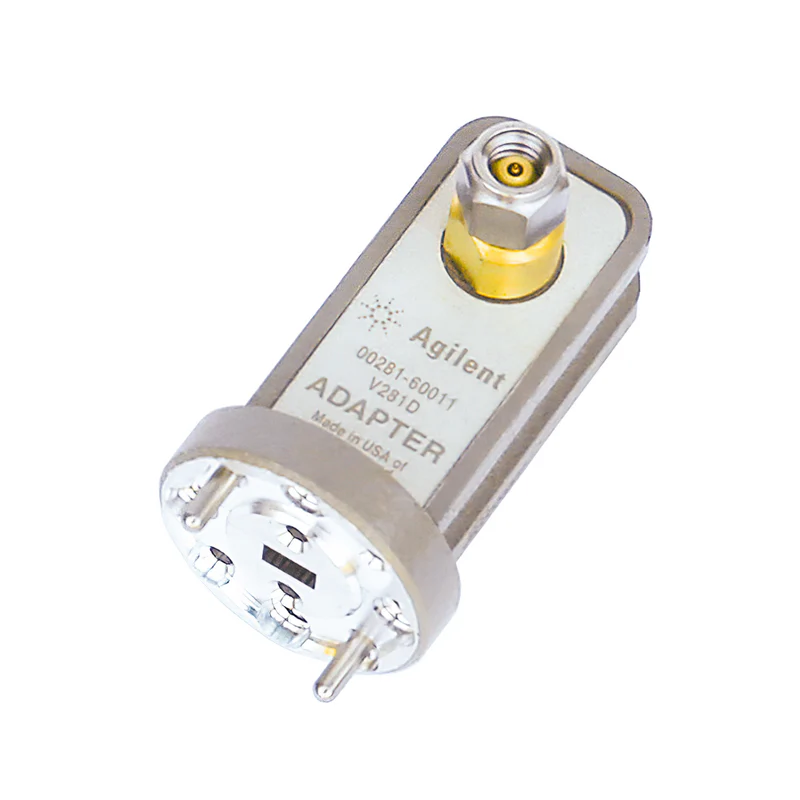

Agilent/Keysight V281DS

The Agilent/Keysight V281DS is an in-line coaxial-to-waveguide adapter that bridges 1.0 mm coaxial connectors to WR-15 waveguide for V-band measurements. It enables direct interfacing between coaxial test equipment and waveguide devices operating across the 50 GHz to 75 GHz spectrum. The adapter delivers 0.7 dB typical insertion loss with 16 dB typical return loss, supporting continuous wave power up to 10 W.

– Technical Specifications

• Frequency Range: 50 GHz to 75 GHz
• Coaxial Connector: 1.0 mm male
• Waveguide Interface: WR-15
• Insertion Loss (Typical): 0.7 dB
• Return Loss (Typical): 16 dB
• Maximum CW Power: 10 W

– Key Features

• Straight-through in-line configuration for direct device integration
• Low-loss transition optimized for V-band signal fidelity
• Rated for sustained 10 W CW operation
• Impedance-controlled design with predictable return loss characteristics

– Typical Applications

• V-band waveguide device measurement and characterization
• Network analyzer calibration and de-embedding in the 50–75 GHz range
• Component testing including filters, amplifiers, and antennas
• Transceiver and radar front-end validation

– Compatibility & Integration

The V281DS connects coaxial test systems—such as network analyzers and signal generators equipped with 1.0 mm ports—directly to WR-15 waveguide test fixtures and device under test. It is designed for seamless integration into V-band measurement benches and automated test environments requiring broadband, low-loss coupling across the full 50–75 GHz operating window.
