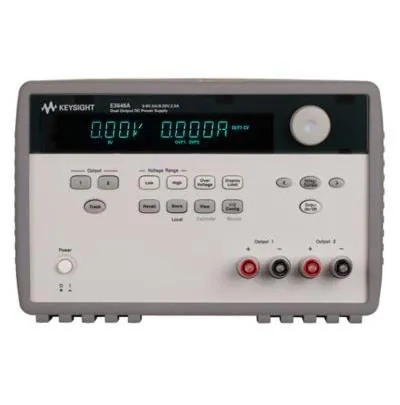

Agilent Technologies E3648A 100W Dual Output Power Supply

The Agilent Technologies E3648A is a 100 W dual-output programmable DC power supply engineered for laboratory testing, circuit development, and automated measurement systems. Each output operates independently with dual-range capability: 0–8 V at 5 A or 0–20 V at 2.5 A per channel. The unit delivers exceptional load and line regulation of 0.01% and combines constant voltage and constant current operation modes, making it suitable for both precision analog circuits and power-hungry device characterization.

Output stability is a defining strength. Voltage ripple and noise measure less than 5 mVpp / 0.5 mVrms across 20 Hz to 20 MHz, while transient recovery occurs in under 50 µsec following load step changes. Programming accuracy for voltage reaches ±(0.05% + 10 mV) in the low-range configuration and ±(0.1% + 25 mV) in the high-range. Current programming accuracy stands at ±(0.2% + 10 mA) and ±(0.15% + 10 mA) respectively.

– Technical Specifications

• Power Output: 100 W total across two channels
• Output Ranges: Range A (0–8 V, 5 A); Range B (0–20 V, 2.5 A)
• Regulation: 0.01% load and line regulation
• Output Noise: < 5 mVpp / 0.5 mVrms (20 Hz–20 MHz); < 4 mArms current ripple
• Transient Response: < 50 µsec recovery to ±15 mV following full/half load transitions
• Settling Time: < 90 msec
• Overvoltage Protection: ± (0.5% + 0.5 V) accuracy; activation < 1.5 msec (OVP ≥ 3 V), < 10 msec (OVP < 3 V)
• AC Input Options: 115 Vac ± 10%, 100 Vac ± 10% (0E9), or 230 Vac ± 10% (0E3); 47–63 Hz

– Key Features

• Dual independent outputs with simultaneous voltage/current display
• Remote sensing terminals for lead-drop compensation
• Five non-volatile memory slots for test configuration storage
• Front-panel rotary knob with 10 mV voltage and 1 mA current resolution
• CV/CC mode automatic crossover

– Compatibility & Integration

GPIB (IEEE-488) and RS-232 interfaces enable integration into ATE environments. Full SCPI command compatibility ensures straightforward instrument control. RS-232 baud rate is user-configurable from 300 to 9600 baud (default 9600 8N2).
