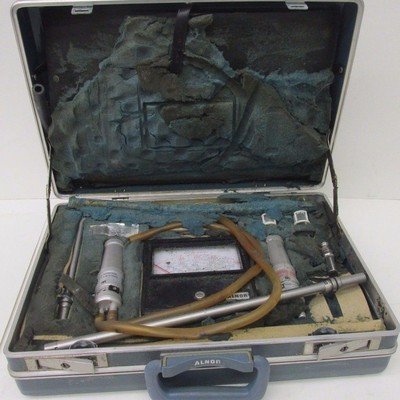

Alnor 6006AP

The Alnor 6006AP is a direct-reading air velocity and static pressure meter for HVAC commissioning, duct traversing, and critical environment certification. This analog-display instrument requires no batteries or external power, operates accurately in any orientation, and excels in confined spaces and hard-to-reach locations. Interchangeable probes and range selectors enable measurement across five velocity scales and two static pressure ranges, making it a versatile platform for balancing, energy audits, and airflow verification.

– Technical Specifications

Air Velocity Measurement
• 0–300 feet per minute (fpm)
• 0–1,250 fpm
• 0–2,500 fpm
• 0–5,000 fpm
• 0–10,000 fpm

Static Pressure Measurement
• 0–1 inch of water (in. H₂O)
• 0–10 inches of water (in. H₂O)

Display: Simulated analog display with seven different analog scales; reads air velocity trends and digital values simultaneously.

Physical Characteristics
• Weight: 2.05 lbs (0.93 kg)
• Case dimensions: 18 × 17 × 4.5 inches

– Key Features

• Battery-free operation ensures intrinsic safety and uninterrupted field use
• Position-independent accuracy—reads correctly in any orientation
• Five interchangeable velocity ranges via 6030CP and 6030DP range selectors
• Two static pressure ranges accommodated by 6080AP and 6080CP probes
• Durable construction maintains calibration through extended field deployment
• Complete probe kit includes low-flow, pitot, diffuser, and static pressure options

– Typical Applications

• HVAC system balancing and commissioning
• Static pressure mapping in ventilation ducts
• Energy audits and efficiency surveys
• Total airflow calculation via duct traversing
• Velocity measurement at diffusers, registers, and grilles
• Open-area monitoring in fume hoods and ventilated plating tanks
• Critical environment certification

– Compatibility & Integration

The 6006AP meter pairs with the complete Alnor Velometer 6000 Series probe and selector ecosystem. Standard kits include 6050P, 6060P, 6070P probes, dual static pressure probes, range selectors, hoses, and carrying case.
