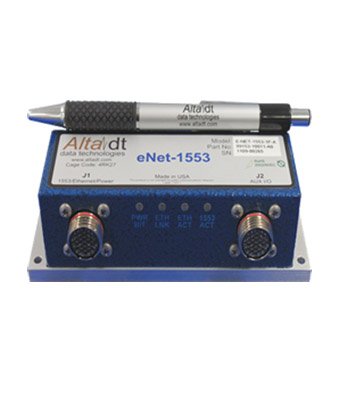

The ENETCAB-1553-J1-01 is a MIL-STD-1553 to Ethernet interface cable assembly engineered to connect Alta Data Technologies eNet-1553 devices to 1553 data buses and Ethernet networks. This 2-foot (0.6 meter) assembly enables remote operation and monitoring of dual-redundant 1553 buses over standard LAN infrastructure, delivering signal integrity through thin MIL cable construction while meeting aerospace and defense durability requirements.
– Technical Specifications
• Cable Type: MIL-STD-1553 to Ethernet interface
• Cable Length: Approximately 2 feet (0.6 m)
• Construction Standard: IPC-610 Class 3, RoHS compliant
• eNet-1553 Side Connectors: Glenair 3-lug (BJ-77 Type) female connectors
– CH1 A: Red shrink tube identification
– CH1 B: Red-Black stripe shrink tube identification
• Ethernet/Power Side Connector: USB Standard A plug connector
• Signal Path: 1553 thin MIL cable construction
• Part Number Label Location: Approximately 2 inches from connector base
– Key Features
• Supports one dual-redundant 1553 bus (Channels A and B)
• USB connector provides integrated power delivery pathway
• Minimum recommended power: 1000 mA @ 5 VDC for gigabit Ethernet negotiation
• Alternative power specification: 4.5 watts @ 5-30 VDC for non-USB sources
• Note: USB sources providing only ~500 mA may be insufficient for gigabit Ethernet operation due to increased power draw
– Typical Applications
• Remote 1553 bus monitoring and control over IP/UDP thin server architecture
• Integration with standard Ethernet network infrastructure
• Aerospace and defense data acquisition systems
– Compatibility & Integration
• Designed exclusively for Alta Data Technologies eNet-1553 devices
• Interfaces standard Ethernet networks via IP/UDP protocol
• Compatible with computer USB ports (Standard A jack)
• Dual-channel 1553 redundancy support
