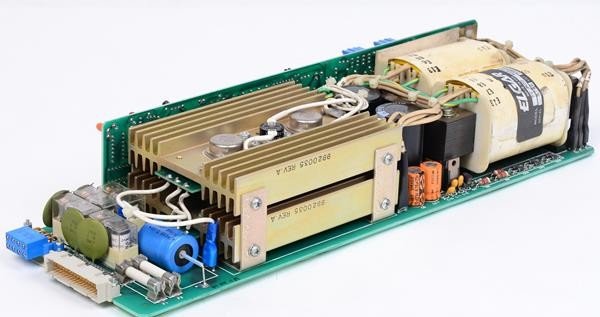

The Ametek / Elgar 7V Mod. Master Power Module is a component designed for integration into larger power systems, specifically within the Ametek / Elgar AT8000, AT8000A, and AT8000B programmable multi-output DC power system mainframes. This module provides a controlled voltage output and is engineered for applications requiring reliable and precise power delivery within industrial testing and laboratory environments.
### Technical Specifications
* **System Compatibility:** Designed for use with Ametek / Elgar AT8000, AT8000A, and AT8000B programmable multi-output DC power systems.
* **Module Type:** DC Power Module.
* **Output Characteristics:** Provides linear DC power output with low ripple. Modules operate in constant voltage or constant current mode.
* **Protective Features:** Includes overcurrent sensing, overvoltage protection with SCR crowbar shutdown, and load isolation (confidence) relays. Polarity switching relays are an optional feature.
* **Control Interface:** Operates within a system controlled locally via front-panel keyboard or remotely via IEEE-488 GPIB.
* **Readback Capability:** With a built-in test option, voltage and current readings are available for DC power modules.
* **Power Density:** The AT8000 series mainframes can accommodate up to six power supply modules and/or electronic load modules. A single chassis can deliver up to 1200W by paralleling power modules.
### Electrical
* **Voltage Output:** The specific voltage output for the “7V Mod.” is not explicitly detailed in the provided search results, but similar modules in the AT8000 series offer various voltage ranges. The 20V Mod. Master Power Module, for instance, is specified as -20V to +20VDC.
* **Current Output:** Specific current ratings for the 7V Mod. are not detailed in the provided results.
* **Power Output:** Specific power ratings for the 7V Mod. are not detailed in the provided results. However, the AT8000 mainframes can support up to 1200W by paralleling modules. Individual DC power modules within the AT8000 series are described as 200W modules that can be paralleled.
* **Efficiency:** Linear design is noted for efficiency.
### Interfaces
* **Remote Control:** IEEE-488 GPIB is a standard remote control interface for the AT8000 series systems.
* **Local Control:** Front-panel keyboard for local operation.
### Physical
* **Form Factor:** Designed as a plug-in module for Ametek / Elgar AT8000 series power system mainframes. The mainframe is a 5-1/4″ high, 19″ wide rackmount chassis.
* **Cooling:** Not specified in the provided results.
* **Dimensions:** Not specified for the individual module.
### Compatibility
* **System Integration:** Explicitly designed for Ametek / Elgar AT8000, AT8000A, and AT8000B programmable multi-output DC power system mainframes.
* **Programming Languages:** Systems supporting these modules can be controlled via ABLE (Atlas Based Language Extension) and CIIL (Control Interface Intermediate Language) for MATE applications.
Why Choose Aumictech for the Ametek / Elgar 7V Mod. Master Power Module?
At Aumictech, we specialize in supplying high-end programmable power equipment. Whether you need reliable integration into complex ATE systems, precise voltage and current control for demanding test applications, or robust performance in industrial environments, our team ensures the Ametek / Elgar 7V Mod. Master Power Module delivers maximum performance for your application.
