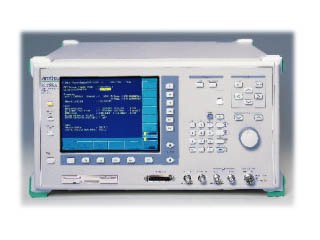

Anritsu MT8820B

The Anritsu MT8820B is a radio communication analyzer that combines signaling and RF measurement capabilities for research, development, manufacturing, and maintenance of mobile devices across multiple wireless technologies. It delivers dual-port RF testing, simultaneous two-device measurement via Parallelphone™ technology, and transmission measurement speeds twice that of its predecessor—all while consuming 30% less power than the MT8820A.

## Technical Specifications

**Supported Technologies**
• W-CDMA/HSPA/HSPA Evolution/DC-HSDPA/4C-HSDPA
• GSM/GPRS/EGPRS
• CDMA2000 1X / 1xEV-DO Rev. 0 / 1xEV-DO Rev. A
• TD-SCDMA/HSPA
• PHS/Advanced PHS

**Frequency Range**
30 MHz to 2.7 GHz; optional 3.4 GHz to 3.8 GHz

**Power Consumption**
Typical 125 W per UMTS port (30% reduction vs. MT8820A at 185 W)

## Key Features

**RF Measurement & Testing**
Performs calibration, RF parametric testing, and functional/quality assessments. Detailed failure diagnosis and evaluation of mobile device transmission/reception parameters. RF Tx/Rx characteristics testing for multiple communication formats with a single unit when optional software and hardware are installed.

**Parallelphone™ Measurement**
Simultaneous and independent testing of two mobile terminals reduces equipment costs and floor-space requirements.

**Transmission Performance**
High-speed Tx measurement capability—twice the speed of MT8820A—significantly improves manufacturing throughput.

**Thermal Design**
Side-to-back exhaust flow enables closer unit placement and space savings versus side-to-side exhaust designs. Reduced fan noise.

## Interfaces

**Remote Control**
• GPIB for automated test system integration
• Ethernet (100Base-TX/10Base-T)
• RS-232C for packet communication

**RF Connectivity**
• Main RF In/Out: 1 port standard, up to 2 ports
• Auxiliary RF Out: 1 port standard, up to 2 ports
• 10-MHz reference output (BNC)
• 10/13-MHz reference input (BNC)

**Additional Ports**
• 10Base-T for packet and W-CDMA video communication
• Call processing I/O for BER measurement and synchronization
• CompactFlash and PC card adapter support

## Compatibility & Integration

Backwards compatible with MT8820A. LTE support available via MT8820C, which shares MT8820B architecture.
