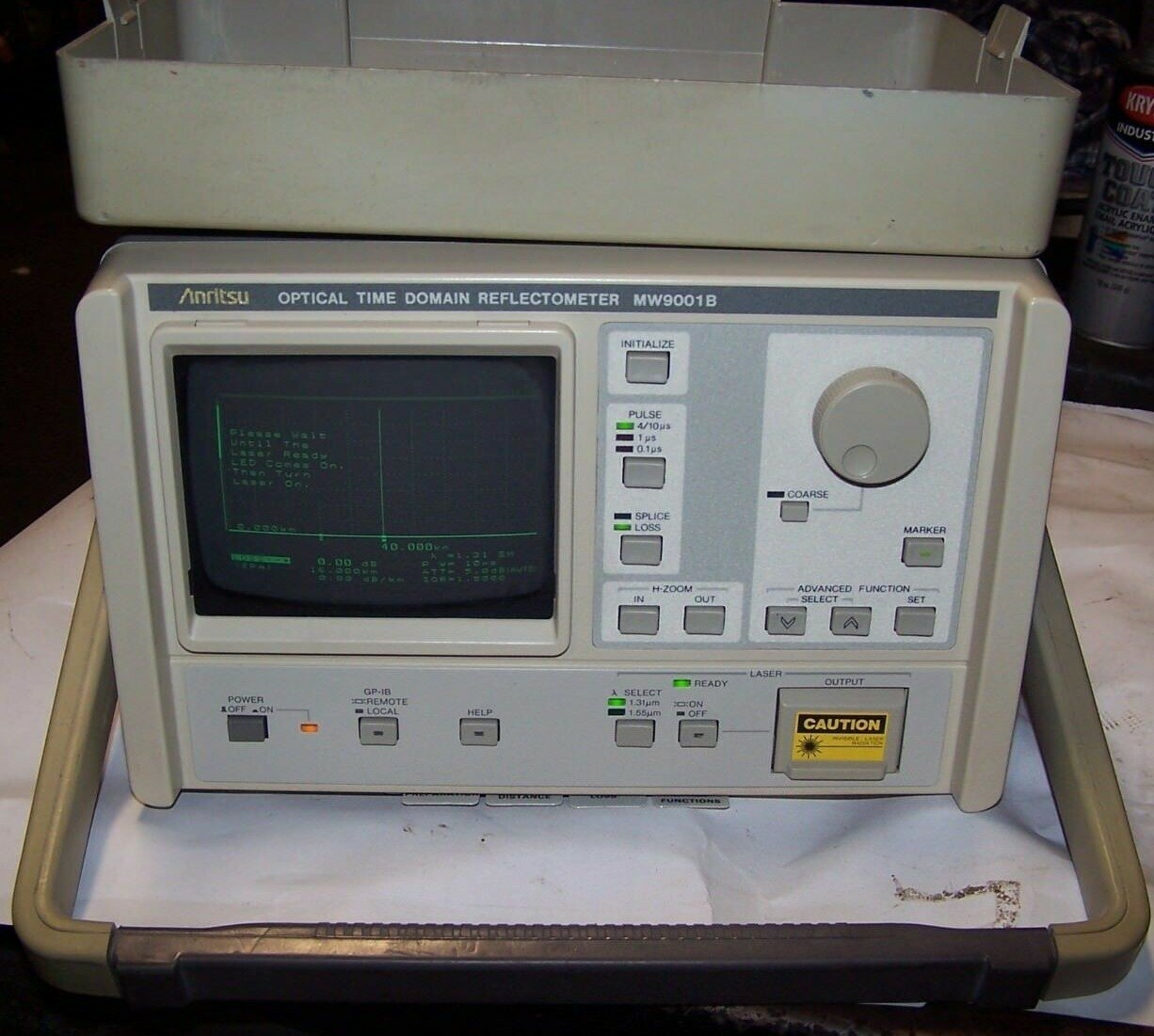

Anritsu MW9001B Optical Time Domain Reflectometer

The Anritsu MW9001B is a portable Optical Time Domain Reflectometer (OTDR) designed for the testing and analysis of fiber optic networks. This instrument is engineered for field technicians and network engineers who require precise measurements and reliable performance in diverse operational environments. The MW9001B, often utilized with various plug-in units, facilitates comprehensive fiber optic link assessment, fault location, and performance verification. Its design prioritizes portability and ease of use, crucial for on-site network maintenance and deployment tasks.

### Technical Specifications

* **Product Type:** Portable Optical Time Domain Reflectometer (OTDR)
* **Model:** MW9001B
* **Applications:** Fiber optic cable testing, troubleshooting, network performance assessment, fault location.
* **Modularity:** Designed to work with various plug-in units (e.g., MH938, MH939A, MH955A) to adapt to different measurement needs and fiber types.
* **Measurement Capabilities:**
* Accurate assessment of fiber optic link performance.
* Identification and location of faults within fiber optic cables.
* Measurement of fiber loss, connection loss, and return loss.
* Can support measurements up to 20,000 km in extended configurations (specific to models like MW90010B, which shares a similar product line heritage).
* **Display:** Features a high-resolution display for clear visualization of measurement data.
* **Portability:** Designed as a portable unit for field deployment.

### Electrical Characteristics

* **Power Source:** Operates on standard power supply, with voltage and current ratings typically indicated on the rear panel.
* **Internal Components:** Often utilizes advanced processing capabilities, such as 16-bit CPUs for high-speed operations in related models.

### Interfaces and Connectivity

* **Modularity:** Supports various plug-in modules, enabling wavelength and fiber type flexibility.
* **Data Transfer/Control:** Related Anritsu instruments in this series often feature GPIB remote interfaces for integration with automated test systems.

### Physical Characteristics

* **Form Factor:** Portable, handheld design suitable for field use.
* **Weight:** Related models like the MW90010B are noted as being easily portable at a maximum mass of 10 kg. The MS9001B/B1 (Optical Spectrum Analyzer) dimensions are listed as 266H x 426W x 450D mm, with a weight of <30 kg.### Software and Analysis Functions* **Analysis Functions:** Related optical spectrum analyzers (like MS9001B/B1) offer functions such as LD Spectrum, LED Spectrum, Loss of Fiber, and Transmission of Filter analysis. * **Measurement Modes:** Related models can feature fully-automatic modes where optimal distance range, pulse width, and averaging are automatically set for fault detection.### Compatibility and Integration* **Plug-in Units:** Designed for compatibility with a range of Anritsu plug-in units to customize functionality. * **System Integration:** The use of interfaces like GPIB on similar Anritsu devices suggests potential for integration into larger testing frameworks.### Documentation* **Service Manuals:** Available for the Anritsu MW9001B, often including details for associated plug-in units.Why Choose Aumictech for the Anritsu MW9001B? At Aumictech, we specialize in supplying high-end fiber optic testing equipment. Whether you need precise fault location, accurate link performance analysis, or reliable network troubleshooting tools, our team ensures the Anritsu MW9001B delivers maximum performance for your application.
