Astronics / EADS / Racal 3151 100MS/s Waveform Generator

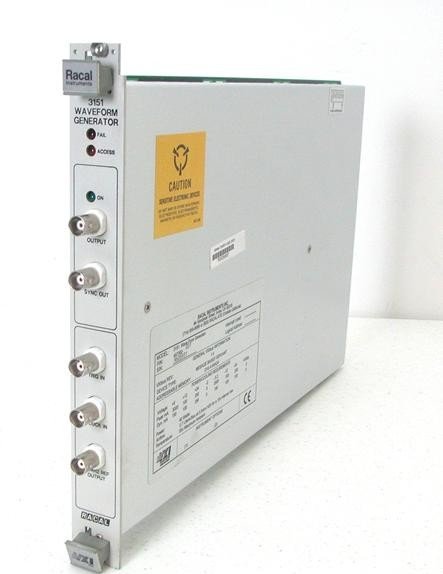

The Astronics/EADS/Racal 3151 is a C-sized VXIbus waveform generator that combines function generation, pulse generation, programmable sequencing, and arbitrary waveform synthesis into a single module. Operating at 100 MS/s with 12-bit vertical resolution, it delivers complex signal generation across a 512k-point arbitrary waveform buffer and supports up to 4096 segmentable waveforms. The instrument generates standard waveforms—sine, square, triangle, sinc, ramp, pulse, DC, exponential, and Gaussian pulse—with flexible triggering, advanced sequencing, and modulation capabilities including AM, FM, PM, PWM, 3D, and amplitude/frequency hopping. Though manufacturer support has ended, third-party suppliers continue to stock and support the 3151, with optional legacy emulation available for Test Program Set compatibility.

## Technical Specifications

• **Sampling Rate:** 100 MS/s
• **Vertical Resolution:** 12-bit
• **Arbitrary Waveform Buffer:** 512k points maximum
• **Waveform Memory:** Segmentable; up to 4096 waveforms of variable size
• **Frequency Range:** 100 Hz to 50 MHz (sine and square waves to 50 MHz)
• **Amplitude Output (open circuit):** 20 mV to 32 V(pk-pk)
• **Amplitude Output (50 Ω load):** 10 mV to 16 V(pk-pk)
• **Amplitude Resolution:** 4 digits
• **Trigger Delay:** Up to 2 M wave points
• **Sweep Range:** Linear/log sweep up to 100 MHz

## Key Features

• Standard and arbitrary waveform generation
• Programmable sequencer with looping and conditional jumps
• External gate and trigger source inputs
• Modulation modes: AM, FM, PM, PWM, 3D, amplitude/frequency hopping
• VXIbus integration with flexible trigger line combining and sync capability
• WaveCAD™ software for waveform design
• VXIplug&play drivers for LabWindows/CVI and LabVIEW (Windows 98, NT, 2000)

## Compatibility & Integration

• Single-slot C-sized VXI module
• Fully backwards compatible with Model 3151A
• Optional emulation for legacy 3151, 3151A, and 3151A+ models
• Front panel connectors compatible with legacy 3151 family
