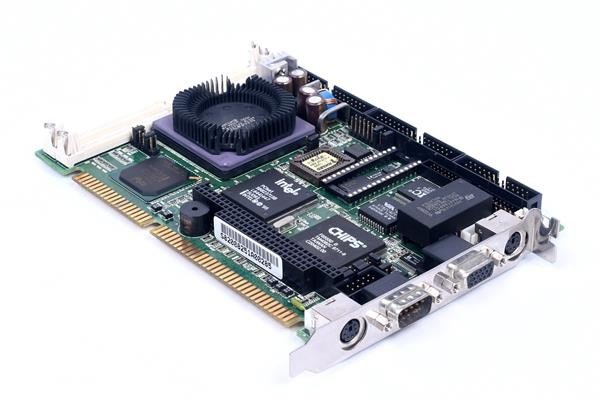

Axiom SBC8251 Motherboard CPU Card

The Axiom Technology SBC8251 is an industrial-grade, half-size CPU card designed for demanding embedded and industrial applications. It integrates the Intel Triton II HX chipset and an enhanced I/O chipset, ensuring compatibility with ISA bus passive backplanes and offering excellent performance for Windows-based applications through its PCI Local Bus architecture. This motherboard card is engineered to support Intel P54C/P55C and Cyrix 6×86 microprocessors, featuring a 6-layer structure to minimize signal noise and incorporating power management features for green functionality.

### Technical Specifications

* **CPU Support:** Intel P54C/P55C, Cyrix 6×86 microprocessors.
* **Chipset:** Intel Triton II HX chipset and enhanced I/O chipset.
* **Processor Socket:** Not specified.
* **L2 Cache:** 512KB Burst cache memory.
* **Memory:**
* Onboard Memory: Not explicitly specified.
* Display Memory: 2MB EDO DRAM (for SBC8251V and SBC8251PV models; not available on SBC8251).
* **Expansion Bus:** ISA, PCI/ISA (model dependent).
* **Onboard VGA Controller:** Not available on the SBC8251 model. The SBC8251V and SBC8251PV models feature a CHIPS 65550 display controller with 2MB EDO DRAM, supporting resolutions up to 640×480 on flat panels and true color on CRTs.
* **EIDE Interface:** 32-bit PCI interface.
* **BIOS:** BIOS utility diskette included.
* **Clock Speed Selection:**
* 50MHz: Short 1-2, 3-4 (JP12).
* 55MHz: Open (JP12).
* 66MHz: Default (JP12).
* **Form Factor:** Half-Size CPU Card.
* **Power Management:** Built-in power management feature for green functions.
* **Construction:** 6-layer structure to reduce signal noise.

### Interfaces

* **EIDE:** 32-bit PCI interface.
* **Expansion Slots:** ISA and PCI slots (specific configurations vary by model, with the SBC8251 featuring ISA and PCI/ISA support).

### Physical Characteristics

* **Dimensions:** Half-Size form factor.

### Compatibility

* **Operating Systems:** Designed to work with Windows-based applications.
* **Processor Compatibility:** Intel P54C/P55C, and Cyrix 6×86 microprocessors.
* **Backplane Compatibility:** ISA bus passive backplane compatible.

### Environmental Considerations

* **Temperature Support:** Extended temperature support suitable for demanding environments. *(Note: Specific temperature ranges were not found in verifiable documentation.)*
