Baker Hughes / Panametrics 703-1250 Controller Board

Lifetime Support by Aumictech

Free OEM-grade Calibration

Fastest turnaround times

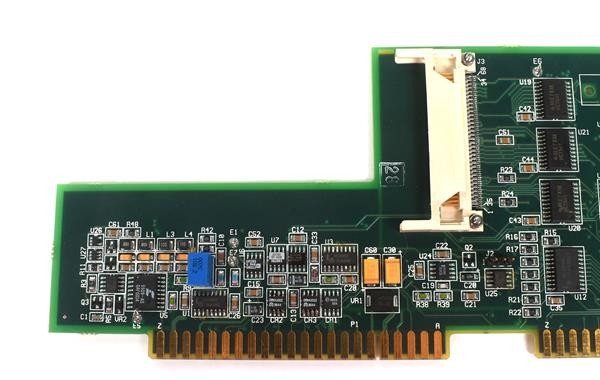

Baker Hughes / Panametrics 703-1250 Controller Board

Name: Baker Hughes / Panametrics 703-1250 Controller Board
Brand: Baker Hughes / Panametrics
SKU: 703-1250
Price: 950.00 USD
Availability: InStock

SKU: 703-1250Categories: Industrial Controllers & PLCs

Brand: Baker Hughes / Panametrics

30 Days Free Returns >

sales@aumictech.com

+1 ‪(484) 841-9341‬

Repair Support & OEM Spare Parts
University and Research Discounts
100% Verified & Tested Equipment
Rental Units Available

The Baker Hughes / Panametrics 703-1250 is a controller board designed for industrial applications. It provides reliable control and monitoring functions, ensuring optimal performance and efficiency in various industrial processes.

Request Repair

Product Starting From:

$950.00

In stock

Precision RF and optical test equipment sales, calibration, and repair by Aumictech. Email: sales@aumictech.com

Fastest Shipping. Estimated 2 days

Shipping Expedited across US-Canada:
FedEx, UPS, USPS
Shipping world-wide available:
DHS, FedEx International

Request Quick Quote 703-1250

The Baker Hughes / Panametrics 703-1250 Controller Board is the central processing unit for the Moisture Image Series 1 analyzer, delivering real-time measurement and control across one to six independent channels. This controller board integrates moisture and oxygen analysis in liquids and gases with simultaneous monitoring of pressure, temperature, and auxiliary sensor inputs, making it suitable for demanding industrial process control applications.

## Technical Specifications

• **Measurement Channels:** 1 to 6 simultaneous channels
• **Moisture Resolution:** 16-bit
• **Measurement Parameters:** Moisture in liquids and gases; oxygen concentration in gases; pressure; temperature; auxiliary inputs (0/4–20 mA or 0–4 V sources)
• **Display:** Large backlit LCD with matrix and line-graph visualization formats
• **Probe Compatibility:** MISP, TF, and M Series type moisture probes
• **Probe Cable Distance:** Up to 915 m (3000 feet) using 22 AWG twisted pair cable
• **Terminal Connections:** M3 screw terminals on terminal board; 0.5 N·m tightening torque; accepts stripped and crimped conductors
• **Cabling Requirements:** Copper conductors with 60/75 °C insulation; twisted and shielded cables recommended for non-power connections; individual cable gauges and lengths per connection type (0.35–1 mm², 3–5 m compensated lengths)

## Key Features

• Windows-compatible software interface (PanaView) supports PC-based data logging, retrieval, archiving, and real-time trending
• Multiple communication protocols: PanaLink and IDM protocols
• Instrument interfaces via RS232, RS485, TCP/IP, IrDA, and IR232
• Menu-driven function keys with point-and-click graphical control
• Real-time data visualization and historical graph generation

## Compatibility & Integration

• PanaView software compatible with Windows 98 SE, NT 4.0 SP 6+, ME, 2000, and XP
• Minimum PC requirements: 64 MB RAM, 300 MHz Pentium CPU; Internet Explorer 5.0 or higher recommended
• Oxygen cell ranges: 0–1/10/100 ppmv or 0–0.5/5/50 ppmv with cable distances up to 90 m

MPN	703-1250
