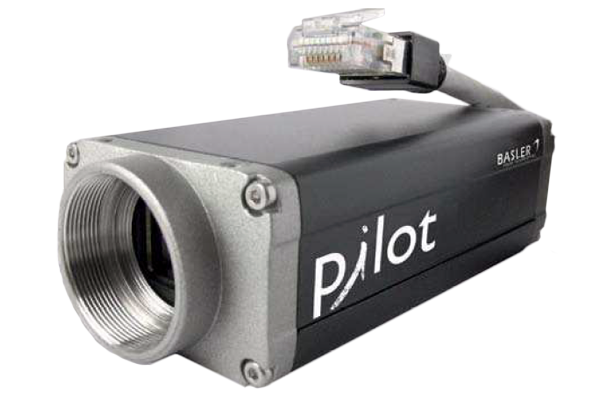

Basler piA2400-17gc Pilot Area Scan Camera

The Basler piA2400-17gc is a GigE Vision area scan camera built around a 2/3-inch Sony ICX625 CCD sensor for industrial imaging applications requiring high image fidelity and deterministic performance. The 2454 x 2056 pixel sensor delivers 17 fps at full resolution with 12-bit pixel depth and global shutter operation. A GigE Vision interface enables direct Ethernet connectivity up to 100 meters without frame grabber hardware, reducing integration complexity and cost.

## Technical Specifications

**Sensor & Optical**
• Sony ICX625CLA CCD sensor, 2/3 inch (8.47 mm x 7.10 mm)
• 2454 x 2056 pixels (or 2456 x 2058 pixels)
• 3.45 µm x 3.45 µm pixel pitch
• 12-bit color imaging
• Global shutter, C-Mount lens interface

**Acquisition & Connectivity**
• 17 fps at full resolution
• GigE Vision over Ethernet, cable runs to 100 meters
• External trigger, software trigger, or free-run synchronization modes
• 2 digital inputs, 4 digital outputs via Hirose 12-pin connector

**Power & Physical**
• 12–24 VDC supply; 5.9 W typical consumption
• 86.7 mm × 44 mm × 29 mm housing
• 220 g typical weight
• Operating temperature 0 °C to 50 °C

## Key Features

• Programmable exposure control via camera API
• White balance adjustment for color correction
• GenICam and EMVA 1288 standards compliance
• CE, RoHS, FCC certified; IP30 ingress protection
• Field-proven Basler pylon driver suite with filter and performance optimization

## Typical Applications

Industrial inspection, quality assurance, and machine vision tasks in manufacturing environments where deterministic global shutter operation and extended cable runs are required.

## Compatibility & Integration

Standard GigE Vision driver support via pylon eliminates proprietary hardware dependencies. GenICam compliance ensures vendor-neutral software integration.
