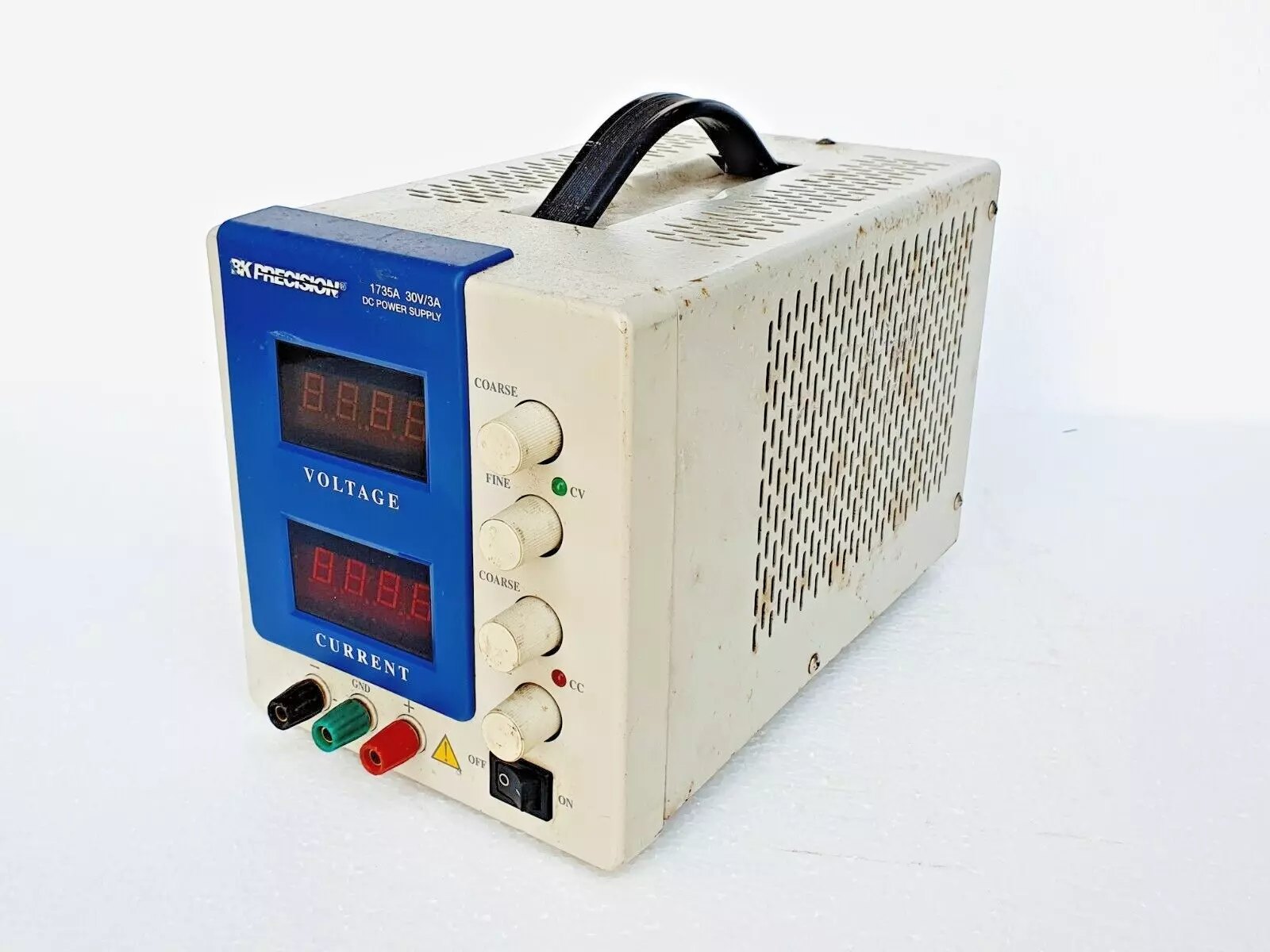

BK Precision 1735A DC Power Supply

The BK Precision 1735A is a single-output, digital DC power supply designed for laboratory and production environments. It provides adjustable voltage and current with coarse and fine controls, featuring dual 4-digit LED displays for simultaneous monitoring of output voltage and current. This unit operates in both constant voltage (CV) and constant current (CC) modes, with automatic and smooth crossover between them, indicated by LEDs. The design incorporates a pre-regulator to minimize internal power dissipation at lower output voltages. For increased power capabilities, two 1735A units can be connected in parallel to double the current output or in series to double the voltage output. Protection features include current limiting, reverse polarity, and overvoltage protection.

### Technical Specifications

**Electrical:**

* **Number of Outputs:** 1
* **Output Voltage Range:** 0 to 30 VDC
* **Output Current Range:** 0 to 3 ADC
* **Power Rating:** 90 W (Note: Some sources indicate a power consumption of 180W)
* **Input Voltage:** 120 VAC, 60 Hz
* **Line Voltage Conversion Switch:** 110/220 VAC selectable

**Performance:**

* **Constant Voltage (CV) Regulation:**
* Line Regulation: ≤ 0.01% + 3 mV
* Load Regulation: ≤ 0.01% + 3 mV
* **Constant Current (CC) Regulation:**
* Line Regulation: ≤ 0.2% + 3 mA
* Load Regulation: ≤ 0.2% + 3 mA
* **Ripple and Noise:**
* Voltage Ripple (RMS): < 1 mV * Voltage Ripple (Peak-to-Peak): 2 mV * Current Ripple (RMS): ≤ 3 mArms (Typically 3mA) * **Recovery Time:** 100 µs typical * **Accuracy:** * Voltmeter: (0.5% + 9 digits)* * Ammeter: (0.5% + 9 digits)* * **Temperature Coefficient:** 300 PPM/°C (for voltage and current)**Modes of Operation:*** Constant Voltage (CV) * Constant Current (CC) * Automatic and smooth crossover between CV and CC modes. * CV/CC Indicators: LEDs display the current mode of operation (Green for CV, Red for CC).**Controls:*** Coarse and fine voltage adjustment knobs. * Coarse and fine current adjustment knobs.**Displays:*** Dual 4-digit LED displays. * Green LED display for voltage monitoring. * Red LED display for current monitoring.**Protection Features:*** Current Limiting Protection * Reverse Polarity Protection * Overvoltage Protection * Overload Protection * Short Circuit Protection### Interfaces* **Output Terminals:** Standard binding posts for connections. * **Front Panel Controls:** Knobs for voltage and current adjustment, mode indicators. * **Rear Panel:** Fuse holder, power cord input, Line Voltage Conversion Switch.### Physical* **Dimensions (H x W x D):** 6.2 in. x 5.5 in. x 12.5 in. (157.48 mm x 139.70 mm x 317.50 mm) * **Weight:** Approximately 10.5 lbs (5 kg) * **Mounting Type:** Benchtop * **Cooling:** Internal cooling fan to prevent overheating### Compatibility* **Series Operation:** Two 1735A units can be connected in series to double the voltage output. * **Parallel Operation:** Two 1735A units can be connected in parallel to double the current output. * **Accessories:** * TL 5A: 5A Hook-Up Cable Set (4mm Banana plug to alligator clip, 5A rating, 40" / 1.0m length) * TLPS: Power Supply Test Leads Set (Includes medium and large insulated alligator clips, sense lead) * TLPWR31: 100 cm Premium Spade Connector Test Lead Set (6/4 mm Spade lug, 30 A rated) * TLPWR32: 200 cm Premium Spade Connector Test Lead Set (6/4 mm Spade lug, 30 A rated) * **Certifications:** UL Approved for USA and CanadaWhy Choose Aumictech for BK Precision 1735A? At Aumictech, we specialize in supplying high-end electronic test and measurement equipment. Whether you need reliable DC power for demanding laboratory testing, precise voltage and current for product development, or robust performance for manufacturing applications, our team ensures the BK Precision 1735A delivers maximum performance for your application.
