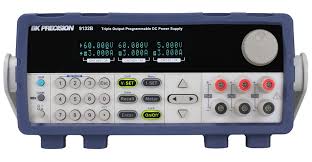

BK Precision 9132B Triple Output Power Supply

The BK Precision 9132B is a versatile, triple-output programmable DC power supply designed to deliver up to 375W of clean, regulated power. Engineered for demanding laboratory, system integration, and enterprise applications, this instrument provides precise voltage and current control with advanced features for reliable operation. Its three independent and electrically isolated outputs can be individually adjusted or combined in series or parallel to achieve higher voltage or current outputs, respectively. The 9132B also offers a tracking mode for user-configurable ratios between channels, simplifying the setup for complex power requirements.

### Technical Specifications

* **Model:** BK Precision 9132B
* **Series:** 9130B Series
* **Type:** Programmable Triple Output DC Power Supply

#### Electrical Specifications

* **Number of Outputs:** 3
* **Output Power:** 375 W total
* **Output Voltage:**
* Channel 1: 0 – 60 V
* Channel 2: 0 – 60 V
* Channel 3: 0 – 5 V
* **Output Current:**
* Channel 1: 0 – 3 A
* Channel 2: 0 – 3 A
* Channel 3: 0 – 3 A
* **Programming and Readback Resolution:** 1 mV / 1 mA (some sources indicate 0.1 mA for current)
* **Regulation:** Low noise, linear regulation
* **Input Power:** 120 VAC, 47 Hz – 63 Hz
* **Fuse Requirements:** Specific requirements detailed in the user manual

#### Output Configuration and Modes

* **Independent Outputs:** Three electrically isolated outputs.
* **Series Mode:** Channels 1 and 2 can be combined in series to increase output voltage.
* **Parallel Mode:** Channels 1 and 2, 2 and 3, or all channels can be combined in parallel to increase output current.
* **Tracking Mode:** Allows for user-configurable ratios between channels, applicable to channels 1 and 2, 2 and 3, or all channels.

#### Front Panel Features

* **Display:** Simultaneous display of voltage and current settings for all three channels.
* **Controls:** Front panel keys and a rotary knob with cursors for setting voltage and current values.
* **Memory:** Store and recall up to 36 instrument settings.
* **Output Control:** Output On/Off control for each channel.
* **Keylock Function:** For securing front panel settings.

#### Interfaces and Communication

* **Standard Interfaces:**
* USB (USBTMC-compliant)
* RS-232
* GPIB
* **Remote Control:** Supports SCPI-compliant protocols for remote control via PC.
* **Software:**
* Provided PC application software for front panel emulation, test sequence generation, and data logging.
* NI certified LabVIEW™ driver and softpanel available for remote control and monitoring.
* Integration with Data Dashboard for LabVIEW apps for remote monitoring via iOS, Android, or Windows 8 compatible tablets/smartphones.

#### Protection Features

* **Overvoltage Protection (OVP):** Configurable overvoltage protection point.
* **Overtemperature Protection (OTP):** Internal protection against overheating.

#### Physical Specifications

* **Dimensions (W x H x D):** 8.45 in. x 3.47 in. x 13.96 in.
* **Form Factor:** Compact 19-inch half-rack size, allowing for side-by-side rack mounting of two units with an optional rackmount kit (IT-E151).
* **Weight:** Not explicitly detailed in accessible documentation.

#### Included Accessories

* AC Power Cord
* Certificate of Calibration
* Test Report
* User Manual

#### Optional Accessories

* IT-E151 Rack Mount Kit
* CC545 General Purpose Power Supply Accessory Kit
