Buehler Fibrskope Portable Microscope 0801-9505

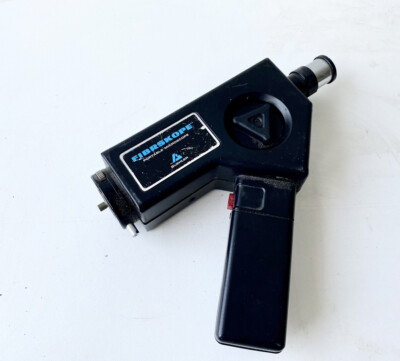

The Buehler Fibrskope Portable Microscope 0801-9505 is a specialized inspection instrument for high-resolution examination of fiber optic end-faces and polished surfaces. It identifies surface imperfections—pits, scratches, and anomalies—critical for quality control in fiber optic manufacturing and field installations. Weighing 21 oz and housed in a durable, impact-resistant plastic body, the Fibrskope delivers portable, on-site analysis without sacrificing optical performance.

## Technical Specifications

**Magnification & Optics**
• 200x magnification (10x widefield eyepiece + 10x objective)
• 400x magnification (20x widefield eyepiece + 20x objective)
• 200x–400x magnification (10x–20x zoom eyepiece)
• Achromatic objectives: 4x (0.10 N.A.), 10x (0.25 N.A.), 20x (0.30 N.A.)
• Widefield eyepieces: 10x and 20x (reticle cell accommodates 19 mm diameter reticles)
• Zoom eyepiece: 10x–20x (no reticle capability)
• Head magnification factor: 1.25x

**Illumination & Power**
• Built-in incident tungsten illuminator with variable intensity control
• Battery operation: 2 × AA, 1.5V each
• AC adapter option: 115V/50–60Hz/1 phase or 220–240V/60Hz/1 phase
• Replacement bulb: 0818-0110

**Focusing & Positioning**
• Coarse and fine focus adjustment with precision fine focus capability
• Connector adapters with X-Y directional adjustment for fiber positioning

**Fiber Optic Connectors**
• Four standard adapters included: SMA 905/906, FC, ST, SC
• Over 40 connector adapters available

## Key Features

• Compact, lightweight design (21 oz) for portability
• Durable, impact-resistant high-density plastic construction
• Built-in laser protection filter for injected laser light
• Fitted carrying case included
• Interchangeable eyepieces and objectives for flexible magnification

## Typical Applications

On-site fiber optic connector inspection, end-face quality verification, polished surface analysis, manufacturing quality assurance.

## Compatibility & Integration

Optional FIBRSKOPE Stand (0822-0110) and AC Adapter (0822-0120) available. Compatible with FIBRMET Portable Fiber Optic Polisher for fiber end preparation. Replacement eyepieces (0815-0200, 0815-0202, 0815-0204) and objectives (0814-0200, 0814-0202, 0814-0204) sold separately.
