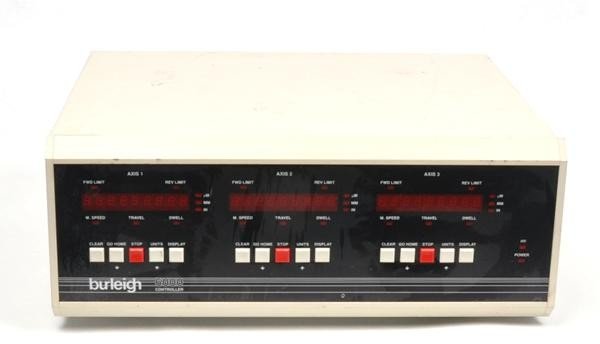

Burleigh 6003 Joystick for Inchworm Controllers

The Burleigh 6003 Joystick is a manual control accessory for Burleigh Inchworm Controllers, delivering proportional command of piezoelectric nanopositioning systems across three independent axes. Designed for applications in microscopy, optics, and materials science, it provides intuitive operator control of motor position, speed, and direction without software intervention.

## Technical Specifications

• **Control Axes:** 3 axes of manual control
• **Signal Interface:** TTL level signals
• **Control Method:** Proportional joystick displacement from center rest position
• **Connection:** Rear panel MANUAL PORT connector on controller

## Key Features

• Direct manual actuation of Inchworm motor operations with proportional speed response
• Joystick displacement from center position directly modulates motor velocity
• TTL-compatible interface for direct integration with Burleigh controller electronics
• Three-axis simultaneous control capability for multi-dimensional positioning
• Field-proven design with established compatibility across Burleigh platforms

## Typical Applications

• Microscopy sample positioning and focusing
• Optical alignment and beam steering
• Materials characterization and inspection workflows
• Real-time manual adjustment of nanoscale positioning systems
• Laboratory research requiring fine manual control without automated sequencing

## Compatibility & Integration
