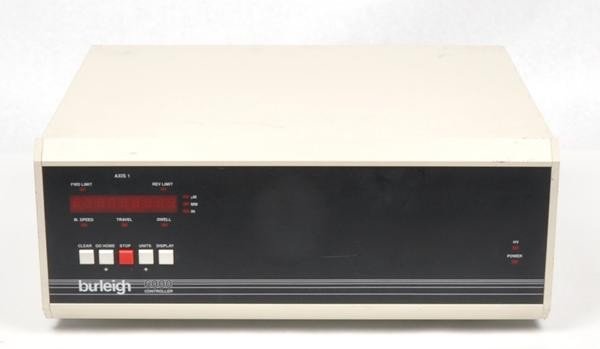

Burleigh 6100-2-2-1-4 2-Axis Inchworm Controller

The Burleigh 6100-2-2-1-4 is a 2-axis Inchworm controller engineered for precision linear motion control across demanding positioning applications. It delivers sophisticated PZT drive electronics that generate the voltage, current, and timing signals required for rapid actuation of piezoelectric drive elements, enabling high-speed operation without sacrificing resolution. The controller operates from one to three axes independently or simultaneously in both open-loop and closed-loop control modes.

Manual operation is supported via handset or joystick interfaces, while remote operation leverages TTL signals or RS-232 protocols for integration into larger automation frameworks. The programmable architecture provides engineers with flexible motion control without the complexity of external timing circuits.

## Technical Specifications

• Number of Axes: 2-axis controller; capable of managing 1–3 axes independently or simultaneously
• Control Modes: Open-loop and closed-loop operation
• Drive Electronics: Sophisticated PZT drive electronics optimized for rapid actuation and high-speed performance
• Performance: High-speed operation with exceptional resolution
• Communication Protocols: TTL signals, RS-232

## Key Features

• Programmable multi-axis control with independent or simultaneous axis operation
• Dual manual and remote control interfaces
• Optimized PZT drive architecture for precision piezoelectric actuation
• No backlash, no leadscrew errors—characteristic of piezoelectric linear motion

## Typical Applications

• Precision positioning systems requiring sub-micron resolution
• Multi-axis motion control in laboratory and research environments
• Automated alignment and scanning applications
• Systems demanding rapid, repeatable positioning without mechanical play

## Compatibility & Integration

The 6100-2-2-1-4 is optimized for Burleigh’s 700 series and LTS/LTO series Inchworm Motors. Manual control accessories include the Burleigh 6005 Handset and Burleigh 6003 Joystick. The controller belongs to the 6000 series family of Inchworm controllers, ensuring compatibility with related Burleigh motion control modules and piezoelectric motor products.
