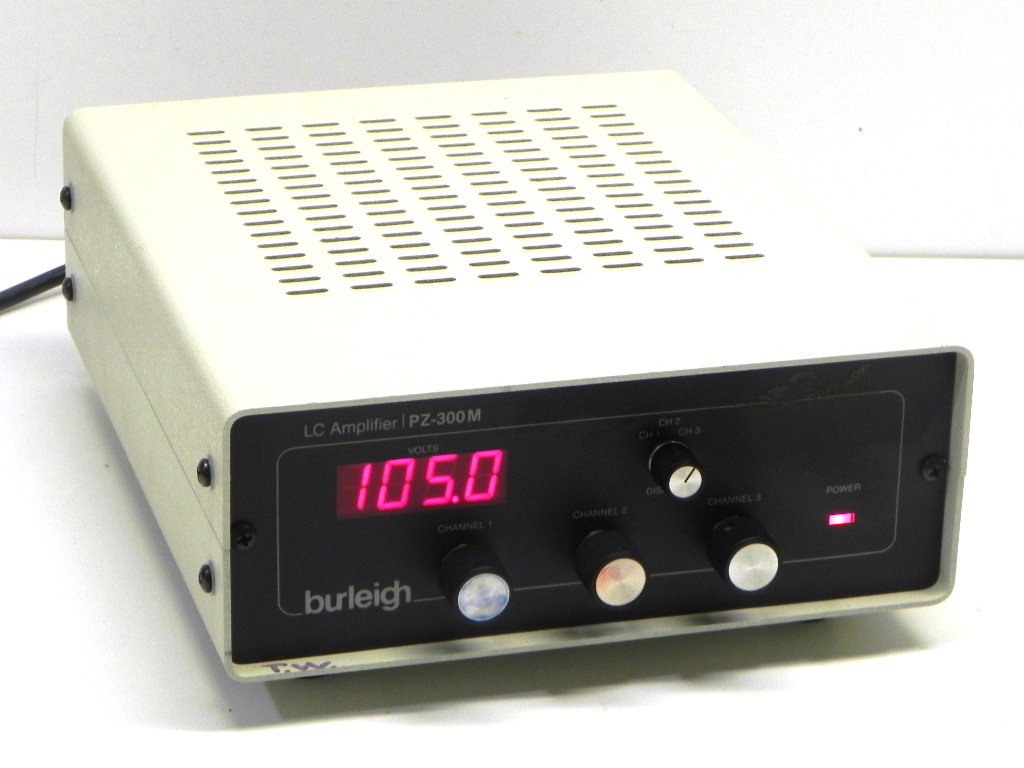

Burleigh PZ-300M Piezo Driver/Amplifier

The Burleigh PZ-300M is a three-channel low-current amplifier designed for driving Burleigh’s low-voltage piezoelectric actuators at DC and low drive frequencies. This instrument is part of a system that enables precision linear actuation for applications demanding high resolution and stability. The PZ-300M features a high-resolution color display and provides manual control of output voltages via front panel bias controls, with the option for remote control through an analog input signal. It is compatible with Burleigh’s PZ-150, PZ-300, and PZ-350 low-voltage amplifier/drivers and utilizes LEMO connectors for actuator interface. The unit is equipped with GPIB and LAN interfaces for remote operation and control.

### Technical Specifications

* **Channels:** 3
* **Drive Frequencies:** DC and low drive frequencies
* **Output Voltage Meter:** Front panel display
* **Control:** Manual via front panel bias control; Remote via analog input signal
* **Actuator Interface:** LEMO connector (standard)
* **Optional Connectors:** Mini-DIN (for PZ-100 Step Driver)
* **Compatibility:** Designed for Burleigh’s Low Voltage Piezoelectric Actuators (PZL, PZO, PZS series)
* **System Integration:** Compatible with PZ-150 and PZ-350 amplifier/drivers
* **Communication Interfaces:** GPIB, LAN
* **Display:** High-resolution color display
* **Power:** Operates up to 150 volts (hazardous)

### Electrical

* **Voltage Specification:** Rated up to 300V, but actuators operate up to 150V
* **Current Specification:** Rated up to 500mA
* **Power Modules:** Equipped with 2 slots for hosting power modules, return loss modules, compact tunable lasers, or fixed laser sources

### Interfaces

* **Analog Input:** For remote control of output voltages
* **GPIB:** For remote control and operation
* **LAN:** For remote control and operation
* **LEMO Connector:** Standard interface for connecting piezoelectric actuators

### Physical

* **Dimensions:** 18 × 12 × 8 in
* **Weight:** 12.2 lbs

### Compatibility

* **Actuator Series:** PZL, PZO, PZS Low Voltage Piezoelectric Actuators
* **Associated Electronics:** PZ-150, PZ-300, PZ-350 Low Voltage Amplifier/Drivers
* **Optional Drivers:** PZ-100 Step Driver (requires optional Mini-DIN connector)

### Applications

The Burleigh PZ-300M is engineered for applications that require precise, stable, and high-resolution linear positioning. Its capabilities make it suitable for:

* **Microscopy:** Enabling fine adjustments for specimen stages or objective lenses.
* **Optics:** Facilitating precise alignment of mirrors, lenses, and other optical components.
* **Nanotechnology:** Supporting high-precision manipulation and positioning in nanoscale research and manufacturing.
* **Automated Test Equipment:** Its remote control interfaces (GPIB, LAN) allow for integration into larger automated systems for testing and measurement.
* **Optical Component Testing:** Built-in applications may include Return Loss, Passive Component Test, Stability, and Logging.
