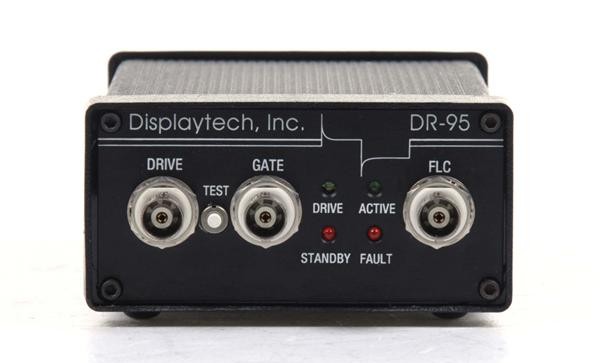

Citizen Displaytech DR95 FLC Driver Board

The Citizen / Micron / Displaytech DR95 FLC Driver is a specialized electronic component designed for the precise control of Ferroelectric Liquid Crystal (FLC) displays, shutters, and polarization rotators. This driver is engineered to optimize the performance and longevity of FLC devices by providing a carefully shaped output waveform that facilitates the fastest possible FLC transition times while preserving the integrity of the FLC material. It is particularly well-suited for applications demanding high-speed optical response and precise control over light polarization.

The DR95 FLC Driver is a low-cost, TTL/CMOS controlled unit that integrates with external signal sources and laboratory generators to produce synchronized, precision FLC drive pulses. Its design incorporates extended-range Schmitt trigger circuitry, allowing compatibility with a variety of input signal types, including standard 5V TTL CMOS, 6-15V CMOS, and analog signals up to ±20V. The output amplifier utilizes high-speed MOSFET devices and precision voltage references to ensure a high degree of symmetry, balance, and accuracy across different temperatures and over time. The unit is capable of delivering over one Amp of drive current and features short-circuit protection for its output stage. It can simultaneously operate multiple FLC devices with a combined area of up to 10 cm², making it suitable for demanding applications.

### Technical Specifications

* **Product Name:** Citizen / Micron / Displaytech DR95 FLC Driver
* **Function:** Controls Ferroelectric Liquid Crystal (FLC) displays, shutters, and polarization rotators.
* **Waveform Optimization:** Designed for fast FLC transition times and maximum FLC device life.
* **Drive Current Capability:** Capable of over 1 Ampere.
* **Simultaneous Device Operation:** Supports multiple FLC devices with a combined area up to 10 cm².
* **Input Signal Compatibility:**
* Standard 5V TTL CMOS
* 6-15V CMOS
* Analog signals up to ±20V.
* **Control Interface:** TTL/CMOS drive and gate input.
* **Output Protection:** Short circuit protected output.
* **Power Input:**
* 105-135 VAC at 50-60 Hz
* 210-270 VAC at 50-60 Hz.
* **Power Cord:** Features a standard IEC detachable power cord.
* **Standby Power Down:** Includes a 20-minute standby power down feature.

### Electrical Characteristics

* **Output Amplifier:** Utilizes high-speed MOSFET devices and precision voltage references.
* **Symmetry and Accuracy:** Achieves high degree of symmetry, balance, and accuracy over time and temperature ranges.
* **Input Signal Conditioning:** Extended range Schmitt trigger circuitry for robust signal reception.

### Interfaces

* **Logic Input:** TTL/CMOS compatible.
* **Analog Input:** ±20V maximum range.
* **Gate Input:** For disabling the drive signal.

### Physical Characteristics

* **Design:** Compact design.

### Compatibility

* **FLC Devices:** Specifically designed for driving Ferroelectric Liquid Crystal shutters and polarization rotators.
* **External Signal Sources:** Requires an external signal source or lab generator for operation.

### Application Areas

* **Optical Switching:** Enabling rapid optical switching applications.
* **Polarimetry:** Facilitating precise polarization measurements.
* **Microdisplays:** Used in advanced microdisplay technologies.
* **High-Speed Imaging:** Supporting applications requiring fast optical response times.

### Manufacturer Information

* **Original Manufacturers:** Citizen, Micron, Displaytech.
* **End-of-Life Status:** The product may be available from third-party suppliers such as Artisan Technology Group beyond its End-of-Life (EOL) by the original manufacturer.
