Cognex VMEbus Vision Processing Module

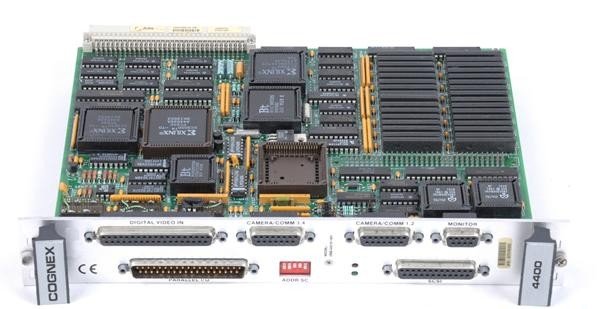

The Cognex VME-4438-002 is a VMEbus vision module designed for integration into VMEbus-based systems. This module is part of the Cognex 4000 series, which are board-level machine vision systems developed for VMEbus architectures. The VME-4438-002, likely a variant of the Cognex 4400, offers advanced image acquisition and processing capabilities suitable for complex industrial automation and machine vision applications, such as high-speed guidance for SMD placement.

**Technical Specifications**

* **System Architecture:** VMEbus-based vision system
* **Series:** Cognex 4000 Series
* **Model Integration:** Designed for seamless integration into VMEbus backplanes.
* **Processing Capabilities:** High-performance image acquisition and processing for complex vision tasks.
* **ASICs:** Features custom vision ASICs for enhanced processing.
* **Video Flexibility:** Offers flexibility in video input and output configurations.
* **Expansion:** Supports optional I/O expansion boards for increased input/output functionality.
* **Memory:** While specific memory details for the VME-4438-002 are not explicitly detailed, related Cognex In-Sight systems show specifications such as 16MB non-volatile flash memory for jobs/programs and 64MB for image processing.
* **Data Transfer:** Utilizes the VMEbus Data Transfer Bus (DTB) for communication between functional modules.

**Interfaces**

* **VMEbus Interface:** Standard VMEbus interface for integration into VMEbus systems.
* **Video I/O:** Includes video input and output ports.
* **Serial Communication:** Supports RS-232C serial communication with baud rates up to 115,200. (Note: 1200 and 2400 baud may not be supported by specific I/O expansion modules).
* **Ethernet:** 1 Ethernet port, 10/100 BaseT, supporting TCP/IP, Ethernet/IP, and Modbus/TCP. Supports DHCP or static IP addressing.
* **Discrete I/O:** Discrete input and output capabilities, potentially expandable with optional I/O modules.

**Physical**

* **Form Factor:** VMEbus board form factor, designed for installation in VMEbus backplanes.
* **Construction:** Built with industrial-grade features, including die-cast aluminum and stainless steel housings in related In-Sight systems, suggesting robust construction for industrial environments.

**Compatibility**

* **VMEbus Systems:** Directly compatible with VMEbus-based industrial control systems.
* **Software:** Designed to work with Cognex’s machine vision software and tools. Specific software versions and compatibility would typically be detailed in accompanying manuals.
* **I/O Expansion:** Compatible with Cognex I/O modules for expanded functionality.
