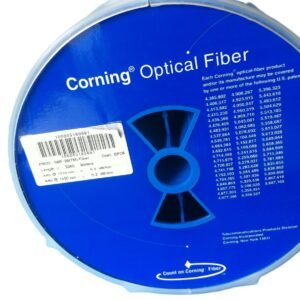

Corning SMF-LS Optical Bare Fiber 25 km CPC6

The Corning SMF-LS Optical Bare Fiber 25 km CPC6 is a single-mode fiber engineered for long-haul telecommunications and enterprise data transmission. This 25 km spool delivers low attenuation across standard operating wavelengths with minimal chromatic dispersion, making it suitable for high-speed network deployments requiring extended reach and reliable performance.

– Technical Specifications

Fiber Geometry
• Core diameter: 8.2–8.3 µm
• Cladding diameter: 125 µm
• CPC6 coating outside diameter: 245 µm
• Spool length: 25 km (≈25,259 m)

Optical Performance
• Attenuation at 1310 nm: ≤0.34 dB/km
• Attenuation at 1550 nm: ≤0.19 dB/km
• Attenuation at 1383 nm: ≤2.1 dB/km
• Numerical aperture: 0.14
• Zero dispersion wavelength (λ₀): 1313 nm (range 1304–1324 nm)
• Zero dispersion slope: 0.086 ps/(nm²•km)
• Cable cutoff wavelength: ≤1260 nm
• Polarization mode dispersion (PMD) link value: ≤0.1 ps/km
• Maximum individual fiber PMD: ≤0.2 ps/km
• Point discontinuity: No single point >0.10 dB at 1310 nm or 1550 nm

Mechanical & Environmental
• Tensile proof stress: ≥100 kpsi (0.7 GN/m²)
• Operating temperature: −60°C to +85°C

– Key Features

• CPC6 dual-acrylate coating provides mechanical protection with low-friction stripping
• Craft-friendly termination and splicing characteristics
• Compatible with loose tube, ribbon, slotted core, and tight buffer cable designs
• Low chromatic dispersion near 1550 nm minimizes intersymbol interference
• Supports 0.5 ps/√km maximum PMD network design requirements

– Typical Applications

• Long-distance terrestrial backbone networks
• High-speed data center interconnects
• Metropolitan and regional telecommunications systems
• Enterprise campus fiber runs requiring 25 km reach

– Compatibility & Integration

The SMF-LS bare fiber integrates into standard single-mode cable assemblies. Its 125 µm cladding conforms to IEC and ITU standards for universal connector and splice compatibility.
