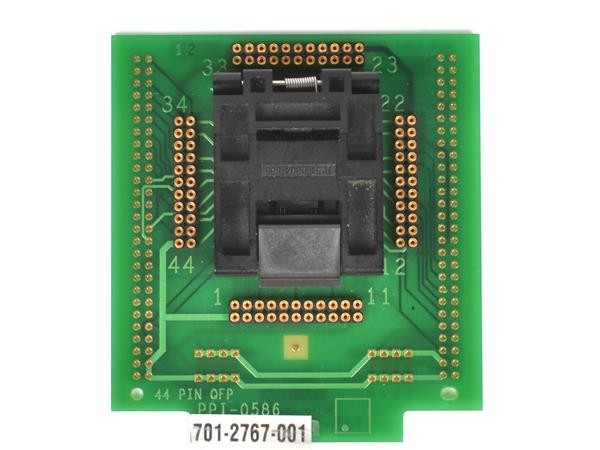

Data I/O PPI-0586 44 Pin QFP Socket Module

The Data I/O PPI-0586 is a 44-pin QFP socket module engineered for device programming and testing within Data I/O programming systems. This PPI adapter accepts 44-pin Quad Flat Package integrated circuits and establishes the electrical and mechanical interface required for reliable programming operations. The module integrates with compatible Data I/O platforms to enable accurate data transfer and precise device manipulation in production and engineering environments.

## Technical Specifications

• **Package Type:** Quad Flat Package (QFP)
• **Pin Count:** 44 pins
• **Module Classification:** PPI adapter socket module
• **Host System Voltage:** 100-240 VAC, 48-63 Hz (host programmer specification)
• **Device Interface:** Direct socket insertion of 44-pin QFP devices

## Key Features

• Dedicated PPI (Programmer-to-Programmer Interface) adapter design
• Socket construction optimized for 44-pin QFP form factor
• Direct interface to Data I/O programming systems via PPI base
• Insertion cycle lifespan dependent on device solder alloy, tolerances, temperature, and cleanliness conditions

## Typical Applications

• Programming and testing of 44-pin QFP integrated circuits
• Production device programming in automated environments
• Engineering validation and qualification workflows

## Compatibility & Integration

The PPI-0586 is explicitly compatible with the Data I/O 2900, 3900, 3980, and UniSite series programming systems. As a component of the PPI adapter family, it functions as an intermediary between the programmer base and the target device. Support for specific semiconductor device families depends on the host programmer’s algorithm library and capabilities.
