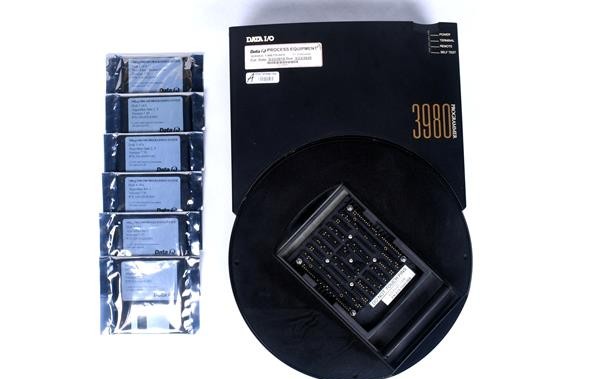

Data I/O PS3980 Programming System

The Data I/O PS3980 Programming System is a high-volume IC programmer engineered for production environments requiring universal device support and exceptional reliability. Built around 88 universal pin drivers and manufacturer-approved programming algorithms developed with over 70 semiconductor partners, the system delivers programming accuracy across thousands of FPGAs, PLDs, CPLDs, memory devices, Flash devices, and microcontrollers. The architecture supports sub-one-volt programming with fine current control and absolute waveform integrity, making it suitable for advanced device families.

## Technical Specifications

**Programming Engine**
• 88 universal pin drivers with sub-one-volt programming capability and fine current control
• Manufacturer-approved and certified algorithms from 70+ semiconductor manufacturers
• Support for devices with high pin counts
• 80 MB internal Mass Storage Module (MSM) for system software and algorithm storage

**Connectivity**
• RS232C serial ports (two standard): 115K baud high-speed download
• SmartPort™: Automatic host protocol sensing and configuration
• Autobaud™: Automatic baud rate detection and adjustment
• Computer Remote Control (CRC): Standard protocol support for custom driver programming
• PS3980xpi variant: High-speed parallel interface with data download speeds up to 600% faster than serial interfaces

**Software Control**
• TaskLink™ software for Windows: Menu-driven PC-based control with job and task profiling
• Standard terminal mode: Full function control via internal menus with compatible terminal connection

## Key Features

• Universal programming for thousands of FPGA, PLD, CPLD, memory, Flash, and microcontroller devices
• Waveform integrity maintained across all pin drivers
• Integrated 80 MB MSM eliminates boot disk requirements and enables rapid algorithm updates
• Parallel interface variant significantly reduces file transfer times for large memory devices

## Typical Applications

High-volume production programming of complex digital devices including FPGAs, Flash memory systems, and embedded microcontrollers in manufacturing environments.

## Compatibility & Integration

Supports Windows-based programming via TaskLink™ or terminal-based control. Compatible with RS232C host systems. Parallel interface option (PS3980xpi) available for accelerated data transfer workflows.
