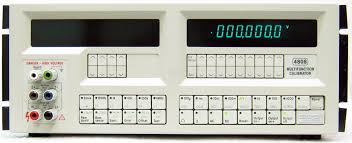

Datron 4808

The Datron 4808 is a precision multifunction calibrator engineered for high-accuracy calibration of digital multimeters and test equipment up to 8.5 digits. It delivers DC voltage measurement to 1000 V with 7½-digit resolution and 10 nV sensitivity, AC voltage to 1000 V at 6½ digits with 100 nV resolution, and current measurement from 100 µA to 10 A (expandable to 11 A). Resistance measurement spans 10 Ω to 100 MΩ, with frequency generation from 10 Hz to 1 MHz. The instrument achieves ±1°C DCV accuracy of 1 + 0.15 ppm on 90-day specifications, with general accuracy of 0.0025% of reading plus 0.0015% of range.

## Technical Specifications

• **DC Voltage:** 0–1000 V, 7½-digit resolution, 10 nV minimum
• **AC Voltage:** 0–1000 V, 6½-digit resolution, 100 nV minimum
• **DC Current:** 100 µA–10 A (Option 40), 6½-digit resolution, 100 pA minimum
• **AC Current:** 100 mA–10 A (Option 40), 6½-digit resolution, 100 pA minimum
• **Resistance:** 10 Ω–100 MΩ (Option 50)
• **Frequency:** 10 Hz–1 MHz
• **Output Impedance:** 100 Ω (100 µV–100 mV ranges); 25 mA maximum (1 V–1000 V)
• **Maximum Capacitive Load:** 1000 pF (1 V–100 V ranges); 300 pF (1000 V)
• **Display:** 7½ digits
• **Power Supply:** 100–240 V AC, 50/60 Hz

## Key Features

• Autocal function ensures 24-hour specification compliance
• Shadow Calibration stores and verifies new calibration data before implementation
• Option 70 extends bandwidth to 3.5 V/30 MHz via Type N connector output
• IEEE-488, RS-232, and USB interfaces support automated remote control
• Modular architecture with configurable voltage, current, and resistance options
• Compact form factor: 285 × 88 × 383 mm, 4.5 kg

## Typical Applications

Calibration laboratories and R&D environments requiring precision DMM verification and multi-function signal generation across DC, AC, and resistance domains.

## Compatibility & Integration

Supported by the 4950 Multifunction Transfer Standard and operates with the 4600 Transducer Amplifier.
