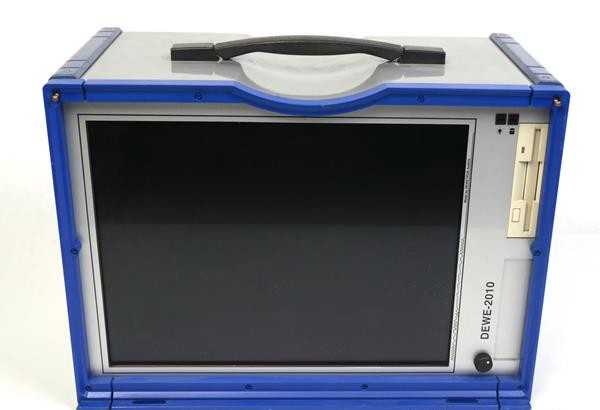

Dewetron DEWE-2010

The Dewetron DEWE-2010 is a portable data acquisition system that functions as a complete computing platform for precision measurement and real-time analysis. Built on industrial-grade COTS components, it captures, processes, and analyzes signals in a single integrated unit without requiring external computation infrastructure. The system delivers 30 to 45 MB/s data throughput and supports expansion to 64 measurement channels, making it suitable for field testing, structural monitoring, and multi-sensor applications.

## Technical Specifications

**Processing & Storage**
• Intel Pentium M processor at 1.8 GHz
• 1 GB RAM
• 250 GB hard disk
• Optional DVD +/-RW burner and 5.25″ removable drive bay (SATA, IDE, or SCSI)

**Display & Interface**
• 15-inch TFT display, 1024 × 768 pixel resolution
• Optional touchscreen capability

**Data Acquisition**
• 16 DAQ input channels (standard)
• Expandable to 64 channels via DEWE-2010-64 model
• 16 module slots for DAQ and PAD conditioning modules
• 5 PCI slots for A/D boards and interface cards
• Industry-standard 200 kHz A/D board, field-upgradeable to faster or 16-bit versions
• Data throughput: 30 to 45 MB/s

**Connectivity**
• Gigabit Ethernet (10/100/1000 BaseT)
• 2 × USB ports
• RS-232 serial (COM1)
• 1 parallel port
• 1394 FireWire, 1553, and CAN support via PCI expansion

**Power**
• Input: 90 to 260 VAC
• Optional AC/DC supply: 115/230 VAC or 10 to 32 VDC
• Optional built-in UPS: ~5 minutes runtime

## Key Features

• Low-noise, high-isolation signal conditioning modules with differential inputs
• Multi-range capability across sensor types: strain gages, accelerometers, thermocouples, RTDs, LVDTs, potentiometric sensors, and tachometers
• Modular architecture supports mixed voltage, current, and temperature measurements simultaneously
• Upgradeability—older configurations retrofit to modern specifications
• Dimensions: 410 × 230 × 290 mm; weight: 12.5 kg

## Typical Applications

• Structural health monitoring and vibration analysis
• Automotive and aerospace testing
• Multi-channel transducer data logging in field environments
• Real-time signal processing without external DAQ hardware

## Compatibility & Integration

• Operating System: Microsoft Windows XP Professional
• Compatible with Dewesoft acquisition and export software
• Standard PCI architecture for third-party instrumentation cards

**Environmental**
• Operating temperature: 0 to +50 °C (−20 °C with pre-warming)
• Storage temperature: −20 to +70 °C
• Humidity: 10–80% non-condensing; 5–95% relative humidity
• Meets MIL-STD 810F vibration (514.5, procedure I) and shock (516.5, procedure I) standards
