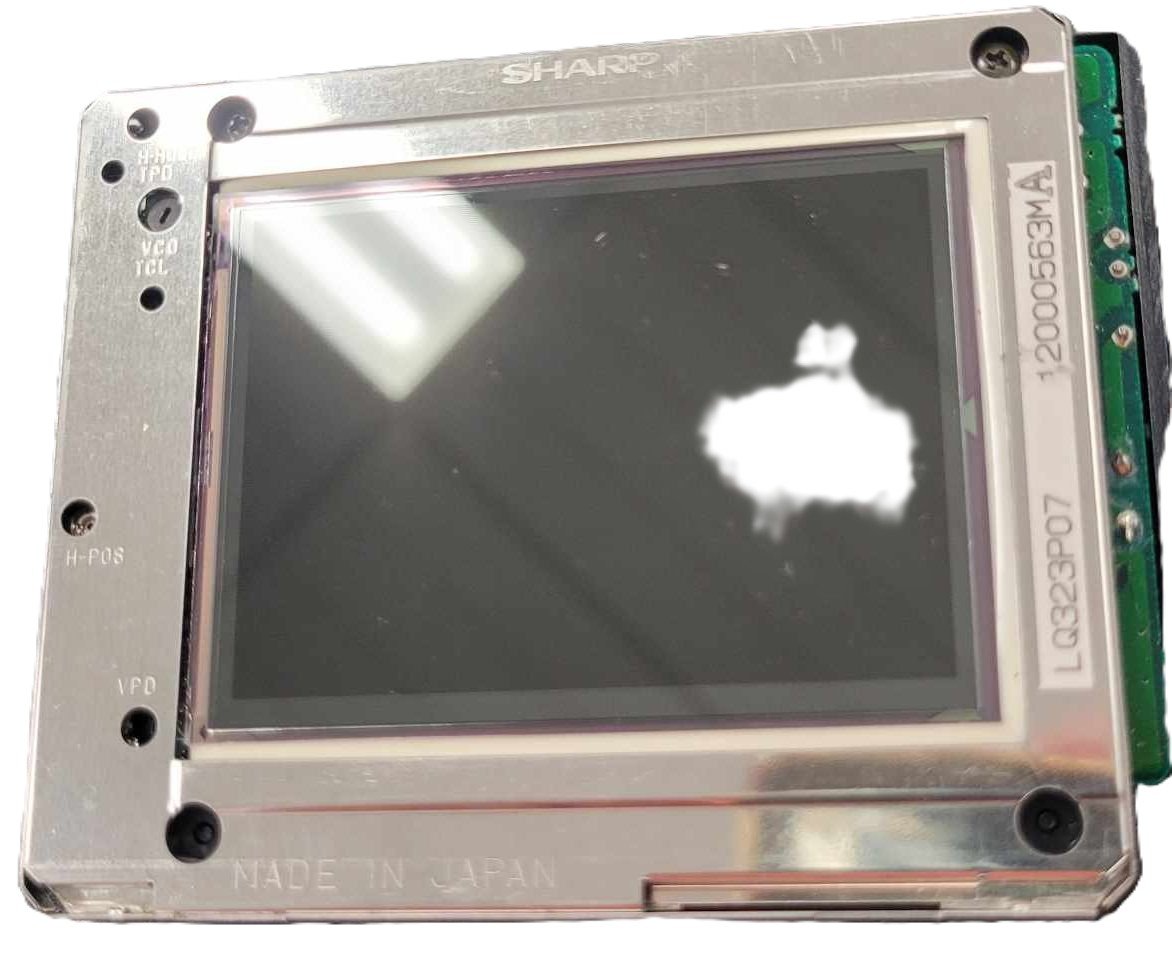

The Display Board/Screen for FSU 900 Series Splicers is a replacement LCD touchscreen assembly engineered to restore operational clarity and responsiveness in Ericsson and Fujikura fusion splicing equipment. This high-resolution display unit provides real-time monitoring of splicing parameters, fiber alignment, and splice loss data, directly supporting precision termination and repair workflows with splice loss performance to <0.05 dB.
– Technical Specifications
• Display Type: LCD Screen with touch functionality
• Resolution: High-resolution, full-color output
• Contrast: High-contrast visuals optimized for clear observation of splicing progress and numerical data
• Screen Size: Typically 3" or 3.5" LCD monitors
• Surface Material: Tempered glass, scratch and impact resistant
• Touch Sensitivity: Responsive interface functional with thin gloves for field operation in variable environmental conditions
• Brightness: Optimized levels across multiple working conditions
– Key Features
• Touchscreen interface enables intuitive selection and modification of splicing parameters without external input devices
• Plug-and-play installation with OEM-matched connectors, alignment pins, and mounting brackets
• Tempered glass construction delivers long-term durability in demanding field environments
• Restores original equipment visibility and parameter responsiveness
– Typical Applications
Replacement display for fiber optic fusion splicer operation, including real-time monitoring of splice loss, core alignment, and splicing cycle progress. Supports both laboratory and field termination workflows.
– Compatibility & Integration
• Ericsson FSU 900, FSU 905, FSU 925, FSU 975, FSU 995 series splicers
• Fujikura models: FSM-88S, FSM-90S, FSM-88R, FSM-90R, FSM-41S, FSM-45S, FSM-36S, FSM-38S, FSM-86S, FSM-48S, FSM-31
• Integration: Seamless OEM-specification alignment; minimal tools required for installation
